Benchmark E1200-PSP myGel InstaView Package: E1200 and E2301 touch screen power supply

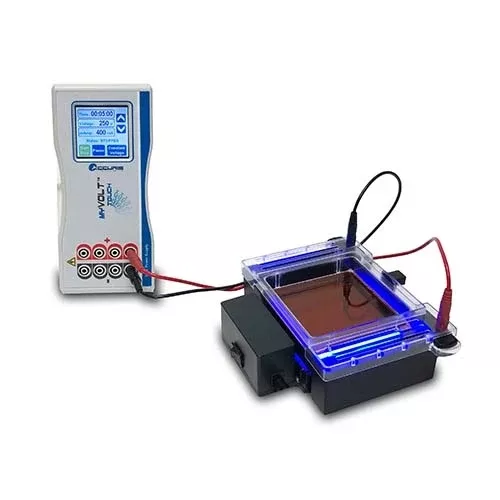

Benchmark E1200-PSP myGel InstaView Package: E1200 and E2301 touch screen power supplyFor labs that prefer to use a separate power supply, the InstaView Gel Tank is the perfect choice for running, viewing and documenting electrophoretic separations. The InstaView Gel Tank accommodates one large (10.5x10cm) or one small (10.5x6cm) gel tray and is supplied with trays, combs and a leak-proof casting stand. The gel tank lid includes attached power leads which prevent the unit from operating without the lid properly in place. The InstaView Gel Tank is shaped to allow the mini LED transilluminator (included) to slide underneath. Blue light, at a wavelength of 465nm, provides excitation of common green fluorescent stains such as SmartGlow™, SYBR™ Green, and GelGreen. An orange filter is incorporated into the gel tank lid for visualizing the DNA in the gel box without any additional equipment or glasses. The transilluminator can be turned on at any time during a run to track progress, and automatically shuts off after 5 minutes. After electrophoresis, simply place the included imaging enclosure over the InstaView Gel Tank to capture high resolution images with a smart phone. Images are easily printed or shared via email or text message.The myVolt Touch is a work horse electrophoresis power supply, ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select “Constant Current” or “Constant Voltage” during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with rotating display allows the myVolt Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space. The myVolt Touch features a logical user interface. Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the “up” and “down” arrows to adjust the value, and then touch “Start”. All parameters are always displayed, with no need to toggle between Time, Voltage or Amperage. In addition the run status is always displayed.INCLUDED:The Benchmark E1200-PSP myGel InstaView Package: E1200 and E2301 touch screen power supplyincludes:Gel Running Tank AssemblyBlue Light LED IlluminatorGel Casting StandGel TraysDouble Sided CombPower SupplyPower CordOperator’s GuideManufacturer’s Documentation2 Year Manufacturer’s WarrantyBenchmark E1200-PSP myGel InstaView Package: E1200 and E2301 touch screen power supply SpecificationsE1200 myGel InstaView Gel Tank w/ Blue LED IlluminatorSpecificationSafetyPhysical interlock between lid and tankBuffer Volume230mlGel Capacity1-10.5x10cm or 1-10.5x6cm gel, 0.5cm thickTransilluminatorBlue LED, 465 nmDimensions7.5 x 8.25 x 5 in. (19 x 21 x 14 cm)Electrical Requirements115V, 60Hz or 230V, 50HzE2301 myVolt Touch Power SupplySpecificationOutput SettingConstant voltage or constant currentVoltage Output10 to 300V (1V increments)Current Output4 to 400 mA (1 mA increments)Maxiumum Wattage100WOutput Terminals4 pairsTimer1 minute to 20 hoursDisplay2 x 2 inch color touchscreenDimensions8.5 x 6.3 x 4 in. (21.5 x 15.5 x 9.75 cm)Electrical Requirements100-230V, 50/60HzRequest a Formal QuoteFrequently Purchased WithBenchmark E1101-COMB1 Reversible CombsAdd to Cart+Benchmark E1200-OC Orange filter coverAdd to Cart
