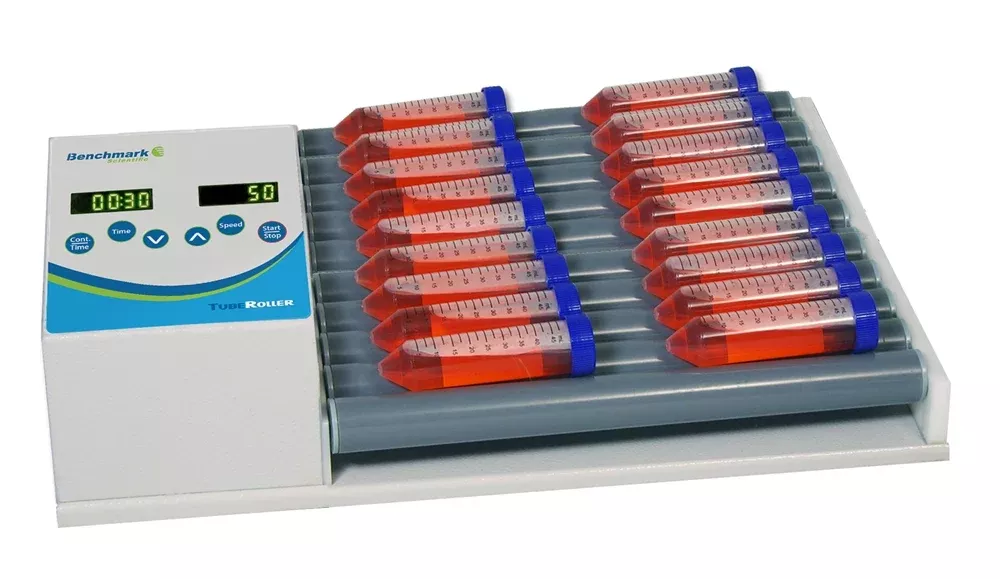

Benchmark TubeRoller with 10 Rollers
Motion
Simultaneous Roll & Tilt (± 5°)
Speed
Variable, 2 to 80 RPM
Load Capacity
8.8 lb. (4 kg.)
Features
- Designed for thorough mixing of a variety of containers, including vacutainers, bottles, test tubes, centrifuge tubes, and roller bottles
- Gentle rolling motion
- Smooth 5° tilting notion
- Accepts tubes and bottles from 8mm to 200mm
- Dual platform accessory doubles work surface
- Ideal choice for research, clinical laboratories, and doctors’ offices
Benchmark Scientific is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
Benchmark TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes, and roller bottles. Both models feature variable speed control (2-80 rpm), suitable for the broadest range of mixing applications.
As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5 in (13mm) and returns to the horizontal starting position. This additional, gentle up/down motion provides a “wave” effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built-in tilt feature provides a level of homogeneous mixing uniformity that cannot be matched by any stationary roller apparatus.
From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories, and doctors’ offices.
INCLUDED:
The Benchmark TubeRoller with 10 Rollersincludes:
- Power Cord
- Operator’s Guide
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
Benchmark TubeRoller with 10 Rollers Specifications
|
Speed |
Variable, 2 to 80 RPM |
|
Tilt Angle |
±5° |
|
Motion |
Simultaneous roll and tilt |
|
Timer |
1 min to 100 hours, or continuous |
|
Operating Temp Range |
+4C to 40C |
|
Dimensions (W x D x H) |
18 x 14 x 3.5 in (45 x 36 x 9 cm) |
|
Roller Dimensions |
12 x 12.5 in (30.5 x 32 cm) |
|
Vessels Accepted |
8mm to 200mm diameter |
|
Roller Spacing |
5mm (rollers are on 35mm centers) |
|
Electrical Requirements |
115V, 50/60Hz |
