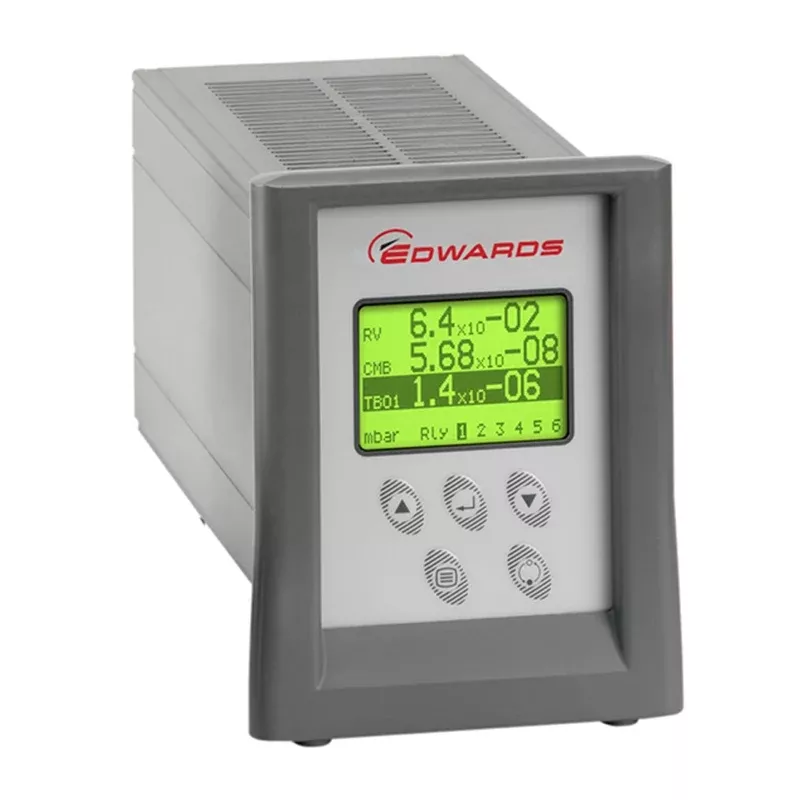

Edwards D39700000 TIC Instrument Controller, 3 Gauge Display, 200W
Gauge Channels
3
Gauge Enable Input
Closed when low: <0.5 V DC
Open when high: 4 to 24 V DC
Analog Output
1 per gauge channel, 0–10 V DC
Features
- Automatically recognizes and controls connected Edwards active vacuum gauges
- Supports direct pressure readout for N₂, He, Ar, CO₂, Kr, and Ne without conversion factors
- Six user-configurable relay set-points with 24 V DC open collector outputs
- Displays relay status and allows assignment of four-character alphanumeric gauge names
- RS232 and RS485 interfaces enable seamless PC and PLC integration
- Windows-based PC software included for full remote control and data logging
- Compact, panel-mountable design with large, easy-to-read graphical LCD
- IP20 enclosure rated for up to 3000 m altitude and 90% RH non-condensing environments
The Edwards D39700000 TIC Instrument Controller, 3 Gauge Display, 200W offers advanced control and monitoring for up to three compatible Edwards active vacuum gauges. Featuring a compact design with a large graphical display and intuitive interface, this controller provides full local and remote functionality through RS232 and RS485 connections, with included Windows software for data logging and setup.
The controller automatically recognizes connected gauges and delivers real-time display with user-configurable options including selectable gauge order and multi-channel viewing. With six user-definable relay set-points, one 0–10 V analog output per channel, and direct pressure readout for common gases like N₂, He, Ar, CO₂, Kr, and Ne, the TIC Instrument Controller is ideal for integrated vacuum system monitoring in laboratory and industrial applications.
INCLUDED:
The Edwards D39700000 TIC Instrument Controller, 3 Gauge Display, 200W includes:
- TIC CD
- Rear Non-Slip Feet
- Logic interface plug
- Analog Output Mating Half Connectors
- Manufacturer’s Documentation
- 1 Year Manufacturer’s Warranty
Edwards D39700000 TIC Instrument Controller, 3 Gauge Display, 200W Specifications
| Gauge Channels | 3 |
| Compatible Gauges | APG & APGX (Pirani), APGX-H (Linear Convection) AIM & AIMX (Inverted Magnetron) ATC (Thermocouple) ASG (Strain Gauge) WRG (Wide Range Gauge) |
| Gauge Enable Input | Closed when low: <0.5 V DC Open when high: 4 to 24 V DC |
| System Interlock | Closed when low: <0.5 V DC Open when high: 4 to 24 V DC |
| Analog Output | 1 per gauge channel, 0–10 V DC |
| Set Points | 1–3 open collector, 24 V DC, 50 mA |
| Alarm Output | Open collector, 24 V DC, 50 mA |
| Serial Interface | RS232 – connects to PC or PLC for monitoring and control |
| Fuse | Self-protecting; recovers automatically after overload |
| Earth Stud | M4 |
| Operating Temperature | 0 to +40°C |
| Storage Temperature | -30 to +70°C |
| Max Ambient Operating Humidity | 90% RH non-condensing at 40°C |
| Max Operating Altitude | 3000 m |
| IP Rating | IP20 |
| IEC Rated Pollution Degree | 2 |
| Dimensions (L x W x H) | 4.33 x 4.13 x 9.65 in. (11.0 x 10.5 x 24.5 cm) |
| Weight | 2.87 lb. (1.3 kg) |
| Electrical Supply | 100 to 240 V AC, 50/60 Hz |
