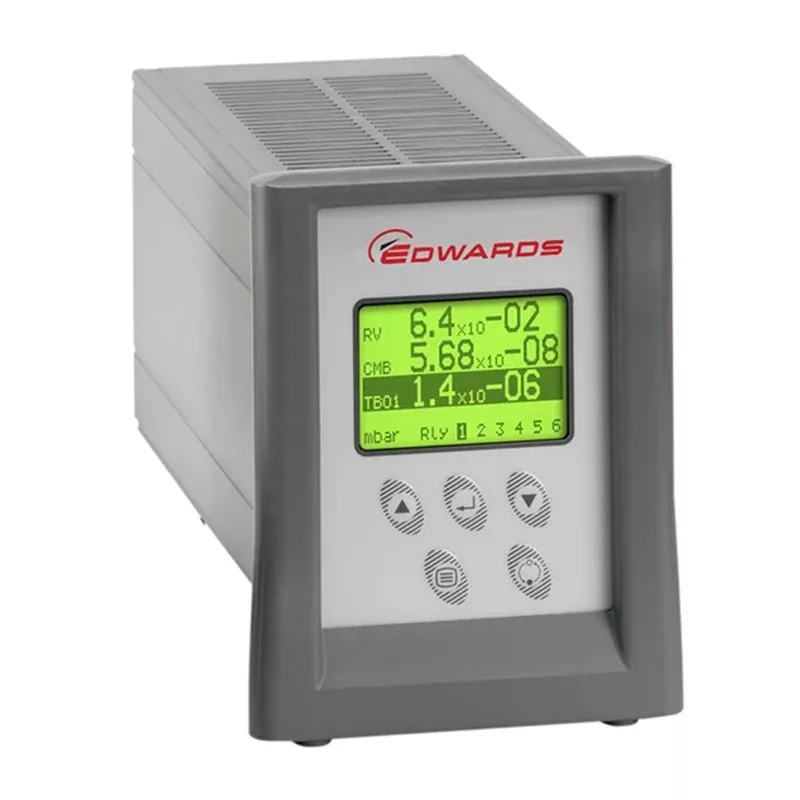

Edwards D39722000 TIC Turbo Pump & Instrument Controller, 3 Gauge Display, 200W
Pump/TIC Power
200 W
nEXT 80 W Ramp
Slow/Slow
nEXT 160 W Ramp
Slow/Fast
Features
- Automatically controls and powers one turbomolecular pump from the nEXT series
- Supports direct control of cooling fans and vent valves for simplified integration
- 200W variant powers and controls 24V DC backing pumps like the XDD1 and connects to nXDS/nXRi via 15-way ‘D’ socket
- Controls a wide range of mains pumps, including the RV series, via optional external relay box
- Built-in control and readout support for up to three active gauges
- Full remote control and data logging via serial communication and Windows™ PC software
- Large backlit graphical LCD with 128 x 64 resolution and intuitive menu navigation
- Compact case design allows panel, rack (¼ 19″ rack 3U), or benchtop mounting with included bezel
- Plug-and-play configuration with standard cable compatibility—no custom looms required
The Edwards D39722000 TIC Turbo Pump & Instrument Controller, 3 Gauge Display, 200W is a compact, high-performance controller designed to power and manage turbomolecular pumps, active gauges, and backing pumps within vacuum systems. This 200W model not only supports automatic control of one nEXT series turbopump (nEXT85 to nEXT400), but also enables control of larger nEXT models like the nEXT930 when paired with a dedicated power supply.
With integrated support for vent valves and cooling fans, the TIC controller also provides the capability to power 24V DC backing pumps such as the XDD1, or control larger nXDS/nXRi pumps through its 15-way D-socket interface. It features connectivity for up to three active gauges, allowing full process visibility for small vacuum systems. The system can be bench or panel mounted, and includes intuitive controls via a backlit graphical LCD. Its plug-and-play configuration, optional relay box for extended compatibility, and robust environmental specifications make it a powerful solution for laboratory and industrial vacuum applications.
INCLUDED:
The Edwards D39722000 TIC Turbo Pump & Instrument Controller, 3 Gauge Display, 200W includes:
- TIC CD
- Rear Non-Slip Feet
- Logic interface plug
- Manufacturer’s Documentation
- 1 Year Manufacturer’s Warranty
Edwards D39722000 TIC Turbo Pump & Instrument Controller, 3 Gauge Display, 200W Specifications
| Pump/TIC Power | 200 W |
| nEXT 80 W Ramp | Slow/Slow |
| nEXT 160 W Ramp | Slow/Fast |
| Max Power Consumption | 215 VA |
| Peak Inrush Current | 10.3 A @ 110 V AC / 23.0 A @ 230 V AC |
| Earth Stud | M4 |
| Air Cooling Fan | 24 V DC, 3 W max, ACX70, ACX75 & ACX250H |
| Vent Valve | 24 V DC, 2 W max, TAV5 & TAV6 |
| Max Ambient Operating Humidity | 90% RH non-condensing at 40°C |
| Max Operating Altitude | 3000 m |
| Operating Temperature | +0 to +40°C |
| Storage Temperature | -30 to +70°C |
| Electronic Design | EN 61010-1 |
| Electromagnetic Compatibility | EN 61326 industrial location, class B emissions |
| Enclosure Rating | IP20 |
| Front Panel Dimensions (W x H) | 4.17 x 5.04 in. (10.6 x 12.8 cm) |
| Electronics Housing Dimensions (L x W x H) | 4.33 x 4.13 x 9.65 in. (11 x 10.5 x 24.5 cm) |
| Weight | 7.72 lb. (3.5 kg) |
| Electrical Supply | 90 to 264 V AC, 47 to 63 Hz |
