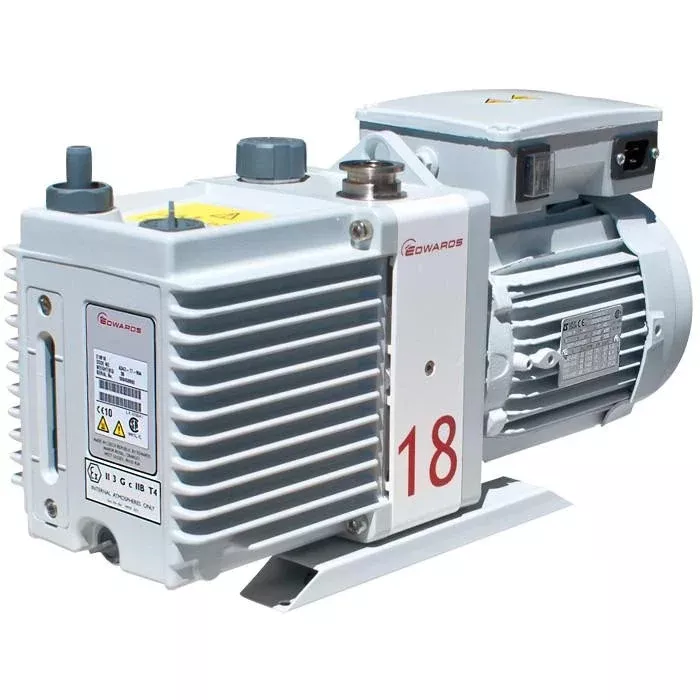

Edwards E2M18FX Vacuum Pump 115/230V

Ultimate Vacuum1x10-3 mbarInlet ConnectionNW25Displacement25.0 m 3h-1 / 14.7 ft 3min-1FeaturesHigh ultimate vacuum and rapid pumping speed make it the industry standard for laboratory and light industrial applicationsQuiet operation ensures a comfortable working environment, reducing noise in sensitive areasFreestanding design with a flexible coupling driven by either a single-phase or three-phase (four pole) air-cooled motor for versatile useFeatures a pressurized oil system that lubricates the pump shaft bearing surfaces and rotor sealing faces for reliable performanceIncludes an oil distribution valve to prevent oil discharge to the pump interior after stopping, enhancing safetyAirtight pumping chambers prevent suckback unless the gas ballast valve is open, maintaining system integrityFacilitates easy oil changes with an oil drain-plug for gravity or pressure oil drainageEdwards E2M18FX Vacuum Pump 115/230VThe EM range of oil sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single phase or three phase (four pole) air cooled motor. Each EM pump is supplied with 2 x 1 litre of Ultragrade 19 oil, O ring and centering ring, two Allen keys and spares seal for oil drain and filter plugs. For PFPE prepared FX pumps Fomblin® to be ordered separately.This is a single stage oil sealed rotary vane pump which has a pressurised oil system that lubricates the pump shaft bearing surfaces and rotor sealing faces. The pump has an oil distribution valve which prevents discharge of oil to the pump interior after the pump stops. The pumping chambers are air-tight, so this arrangement also prevents suckback unless the gas ballast valve is open. You can inspect the level and condition of oil in the oil box reservoir through the oil sight-glass. An oil filler-plug is fitted to the top of the oil box. The pump has an oil drain-plug to allow either gravity oil drain or pressure oil drain. If you require a different voltage or model, please inquire with our customer service team.Click Here to View Product VideoINCLUDED:The Edwards E2M18FX Vacuum Pump 115/230V includes:O ring and centering ringOperator’s Manual1 Year Manufacturer’s WarrantyManufacturer’s DocumentationFomblin not included with FX Vacuum pumps, must be purchased separately.Edwards E2M18FX Vacuum Pump 115/230V SpecificationsDisplacement (50Hz)20.5 m 3h-1/ 12.1 ft 3min-1Displacement (60Hz)25.0 m 3h-1 / 14.7 ft 3min-1Speed (Pneurop 6602) 50 Hz17.0 m 3h-1 / 10 ft 3min-1Speed (Pneurop 6602) 60Hz20.4 m 3h-1 / 12.1 ft 3min-1Ultimate vacuum (total pressure)without gas purge1 x 10 -3 mbar / 7.4 x 10 -4 Torrwith gas purge1.5 x 10 -2 mbar / 1.1 x 10 -2 Torrwith Fomblin®1 x 10 -2 mbar / 7.5 x 10 -3 TorrInlet connectionNW25Outlet connection**Nozzle 15 mm external Ø removable from 3/4 in BSP tapped holeMax permitted pressure at outlet0.5 bar gauge / 7 psigfor water vapour15 TorrMax water vapour pumping rate0.3 kg h -1Operating temp range13-40°CNominal Rotation speed 50/60Hz1440/1720 rpmPower connector 1-ph*IEC EN60320 C19Motor power 50 Hz0.55 kWMotor power 60 Hz0.75 kWWeight39 kg / 86 lbsNoise @ 50Hz57 dB(A)Oil capacity – max1.05 litreOil capacity – min0.75 litreRecommended oil (supplied)Ultragrade 19Electrical Requirements200-230V, 50/60Hz, 1PhComparison of ModelsSpecificationsE1M18E2M0.7E2M1.5 (100-120V)E2M1.5 (230V)E2M18E2M18FX 115/230VE2M28Displacement 50Hz (m3h-1 / ft3min-1)20.5 / 12.10.9 / 0.51.8 / 11.8 / 120.5 / 12.120.5 / 12.132.2 / 19Speed 50Hz (Pneurop 6602) (m3h-1 / ft3min-1)17.0 / 100.75 / 0.41.6 / 0.81.6 / 0.817.0 / 1017.0 / 1027.5 / 16.2Ultimate Vacuum (mbar / Torr) without gas purge3 x 10-2 / 2.2 x 10-23.0 x 10-3 / 2.3 x 10-33 x 10-3 / 2.3 x 10-33 x 10-3 / 2.3 x 10-31 x 10-3 / 7.4 x 10-41 x 10-3 / 7.4 x 10-41 x 10-3 / 7.5 x 10-4Inlet ConnectionNW25NW10 flangeNW10 flangeNW10 flangeNW25NW25NW25 flangeWeight (kg / lbs)37 / 8210 / 2210 / 2210 / 2239 / 8639 / 8644 / 97Noise Level @ 50Hz (dB(A))57435454575757Electrical Requirements120V, 50-60 Hz100-120V, 50/60Hz100-120V, 50/60Hz200-230V, 50/60Hz120V, 50-60 Hz115/230V100-120V, 50/60HzDownloads Technical Specification DownloadOperator’s Manual Download Request a Formal Quote”,”hasVariant”:[{“@id”:”/products/edwards-e2m18fx-vacuum-pump-115-230v?variant=52905677095279variant”,”@type”:”Product
