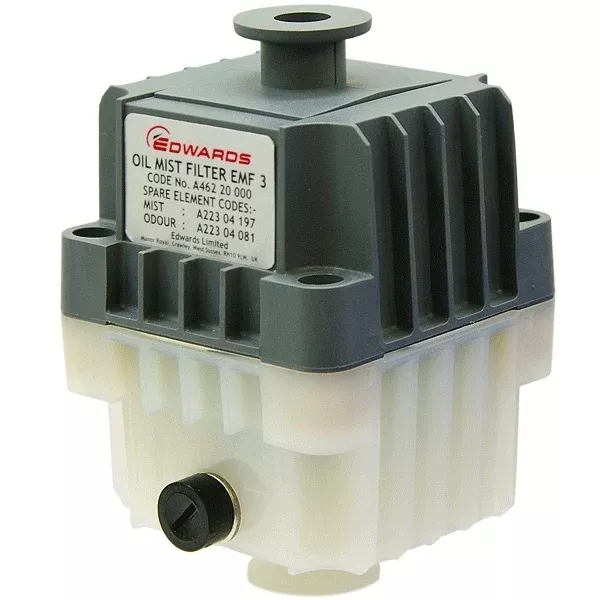

Edwards EMF3 Oil Mist Filter NW10

Edwards EMF3 Oil Mist Filter NW10Rated Flow3 m 3h-1Maximum Back Pressure12 psig (1.8 bar absolute, 1.8 x 10 5 Pa)Filter Body MaterialCrytalline NylonFeaturesSeparates and traps oil mist and odors from oil sealed rotary vacuum pumpsFeatures two-part injection molded bodies with a fiber composite oil mist filter and an activated carbon odor filterOil droplets are efficiently captured and drain into a reservoirLightweight design with a mass of 0.315 kg for easy handlingConstructed from crystalline nylon for durability and resilienceDesigned with NW10 flange size for compatibility with standard systemsThe Edwards EMF3 Oil Mist Filter NW10 is an essential device for maintaining clean and odor-free environments when using oil-sealed rotary vacuum pumps. This lightweight filter, weighing only 0.315 kg, is designed to efficiently separate and trap oil mist and odors through its two-part injection molded body, which houses a fiber composite oil mist filter alongside an activated carbon odor filter. The captured oil droplets conveniently drain into a reservoir, simplifying maintenance and enhancing system cleanliness. Constructed from durable crystalline nylon and engineered with a NW10 flange size, the EMF3 ensures compatibility with standard systems and can handle a rated flow of 3 m³/h. It is built to withstand a maximum back pressure of 12 psig and has a relief pressure of 20 psig, providing reliable performance and resilience in demanding applications.INCLUDED:The Edwards EMF3 Oil Mist Filter NW10includes:NW10 ClampCentering RingO-RingNW10 to 3/8 inch BSP AdaptorManufacturer’s Documentation1 Year Manufacturer’s WarrantyEdwards EMF3 Oil Mist Filter NW10 SpecificationsRated Flow3 m3h-1Maximum Back Pressure12 psig(1.8 bar absolute, 1.8x 105 Pa)Relief Pressure20 psig (2.37 bar absolute, 2.37 x 105 Pa)Mass0.315 kgFilter Body MaterialCrytalline NylonFlange SizeNW10Comparison of ModelsSpecificationsEdwards EMF3 Oil Mist Filter NW10Edwards EMF10 Oil Mist Filter NW25Edwards EMF20 Oil Mist Filter NW25Edwards MF30 Outlet Mist FilterRated Flow (m³/h)3122030Maximum Back Pressure12 psig (1.8 bar absolute, 1.8 x 10⁵ Pa)12 psig (1.8 bar absolute, 1.8 x 10⁵ Pa)12 psig (1.8 bar absolute, 1.8 x 10⁵ Pa)-Relief Pressure20 psig (2.37 bar absolute, 2.37 x 10⁵ Pa)20 psig (2.37 bar absolute, 2.37 x 10⁵ Pa)20 psig (2.37 bar absolute, 2.37 x 10⁵ Pa)0.35 bar, 3.5 x 10⁴ PaMass (kg)0.30.50.71.3Filter Body MaterialCrystalline NylonCrystalline NylonCrystalline NylonEpoxy Impregnated Glass-FibreFlange SizeNW10NW25NW25NW25For use withSpeedivac 2, E2M0.7, E2M1.5RV3, RV5, RV8RV12 and E2M18E2M28Request a Formal Quote
