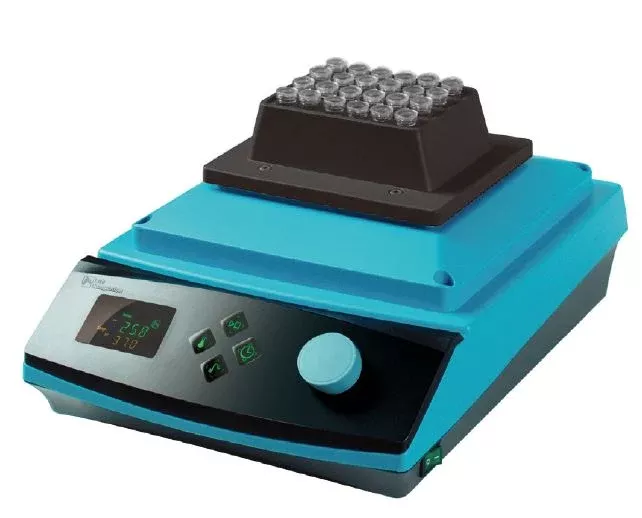

Jeio Tech CBS-350 Heating Shaker US Plug 120V, 60Hz

Jeio Tech CBS-350 Heating Shaker US Plug 120V, 60Hz

Temperature Range
Ambient +5°C to 100°C / Ambient +41°F to 212°F

Temperature Variation at 80°C
±0.7°C

Orbital Size
0.08 in. diameter

Features

• Heating and shaking in one compact platform with temperature control up to 100°C and orbital shaking speeds reaching 1500 rpm depending on the installed heating block.
• Programmable temperature and shaking control supports up to 10 steps, allowing users to build more structured heating and mixing workflows without continuously adjusting settings manually.
• Specialized interval mixing programs alternate between shaking and stopping, providing additional flexibility for applications that benefit from controlled mixing cycles rather than continuous agitation.
• Precise temperature adjustment and calibration allow temperature settings in 0.1°C increments while the calibration function helps minimize temperature deviation during operation.
• Soft-start shaking gradually brings samples up to the selected speed, helping reduce abrupt sample movement and providing smoother operation at startup.
• Clear, straightforward controls combine a VFD display, touch keys, and a control knob for convenient adjustment of temperature, shaking speed, program settings, and operating time.
• Extended timer capability supports countdown operation from 1 minute up to 99 hours and 59 minutes, making the unit suitable for both short mixing procedures and longer controlled processes.
• Efficient heat transfer design uses close coupling between the main body and optional black hard-anodized aluminum heating blocks to promote effective thermal transfer to samples.
• Durable, laboratory-friendly construction incorporates polypropylene and powder-coated steel in the main body, along with chemically resistant polypropylene components and an integrated shaking module.
• Built-in operating safeguards include over-temperature and over-current protection, along with heating-status indication to help support safer routine operation.

The Jeio Tech CBS-350 Heating Shaker US Plug 120V, 60Hz combines controlled heating with orbital shaking for tube and microplate applications requiring consistent temperature and mixing. The system operates up to 100°C and supports shaking speeds up to 1500 rpm, with the maximum speed determined by the heating block installed.

A compact footprint, clear VFD interface, temperature calibration, programmable temperature and shaking control, and a timer up to 99 hours and 59 minutes simplify routine workflows. Built-in over-temperature and over-current protection provide additional operating safeguards, while the tightly coupled heating design promotes efficient heat transfer to the optional anodized aluminum blocks.

INCLUDED:
The Jeio Tech CBS-350 Heating Shaker US Plug 120V, 60Hz includes:

• 2 Year Manufacturer’s Warranty
• Operator’s Manual

Jeio Tech CBS-350 Heating Shaker US Plug 120V, 60Hz Specifications
