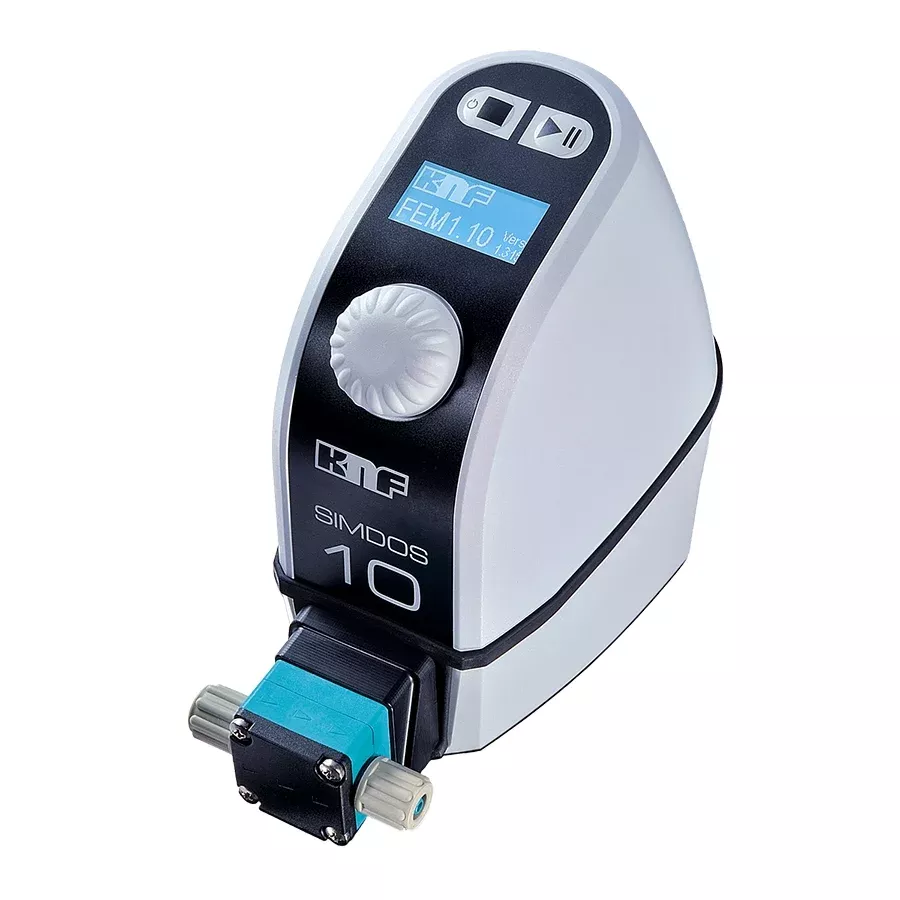

KNF SIMDOS 10 IP65 UFEM 1.10 ST.18RC2 Diaphragm Liquid Dosing Pump
Flow Rate Range
1 to 100 ml/min
Programmable Dosing
1 to 999 ml
Maximum Suction Height
3 mWg
Features
- Small footprint
- Simple, intuitive operation
- Manual, analog control
- Self-priming, can run dry
- Consistent, reliable flow rate
- Simple calibration
- Adaptable to fluid characteristics
The KNF SIMDOS 10 IP65 UFEM 1.10 ST.18RC2 Diaphragm Liquid Dosing Pump is a liquid dosing/metering diaphragm pump. Offers wetted material combinations for optimal chemical resistance. Manual control of flow rate and dosing volume with LCD graphic display.
INCLUDED:
The KNF SIMDOS 10 IP65 UFEM 1.10 ST.18RC2 Diaphragm Liquid Dosing Pumpincludes:
- Connection Kit (Hose and Screw-in Fittings)
- Remote Control Cable
- Filter
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
KNF SIMDOS 10 IP65 UFEM 1.10 ST.18RC2 Diaphragm Liquid Dosing Pump Specifications
| Flow Rate Range | 1 to 100 ml/min |
| Programmable Dosing Range | 1 to 999 ml |
| Maximum Suction Height | 3 mWg |
| Maximum Pressure | 6 bar |
| Pump Head Material | Stainless Steel |
| Diaphragm Material | PTFE Covered |
| Valve Material | FFKM Kalrez |
| Filter | PEEK |
| Protection Class | IP65 |
| Connections | 1/4″ OD x 1/8″ ID x 2 M tubing and compression fittings included |
| Maximum Viscosity Allowed | 500 cSt (reduced flow rate above 150 cSt) |
| Permissible Liquid Temperature | 5°C to 80°C |
| Permissible Ambient Temperature | 5°C to 40°C |
| Dimensions (W x D x H) | 5.9 x 3.7 x 5.5 in. (15 x 9.3 x 14 cm) |
| Weight | 2 lb. (0.9 kg) |
| Electrical Requirements | 100-240V, 50/60Hz, 24W |
