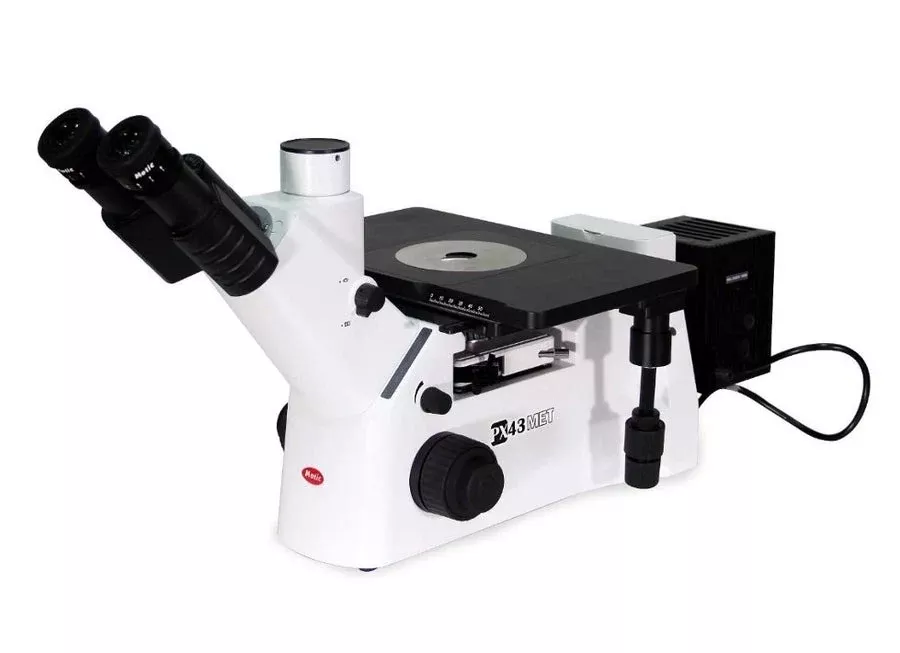

Motic PX43MET Trinocular Inverted Industrial Microscope w/ Moticam S6
Objectives
S-APO BD 5X, 10X, 20X, 50X Objectives
Optical System
Color Corrected Infinity Optical System (CCIS)
Illumination
Köhler Quartz Halogen 12V/100W with Intensity Control
Features
- DIC for better depth imaging.
- Brightfield and Darkfield contrast methods to ensure compatibility with a variety of applications.
- Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software.
- 360° Swivel Range guarantees effective use of laboratory space.
- Can be used with SLR and DSLR Camera via 2.5x and 4x Camera Eyepieces.
- Motic ECO Smart Sense is an infrared sensor built into the stand which detects whether or not there is a user working in front of the microscope.
Motic is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.
INCLUDED:
The Motic PX43MET Trinocular Inverted Industrial Microscope w/ Moticam S6 includes:
- Plan S-APO BD 5X, 10X, 20X, 50X Objectives
- Moticam S6
- 12.5×7.5inch stage with metal plate
- Quintuple Revolving Nosepiece
- Fine Focus Knob
- UC-WF 10X/FN22 Eyepieces
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 5 Year Manufacturer’s Warranty
Motic PX43MET Trinocular Inverted Industrial Microscope w/ Moticam S6 Specifications
| Optical System | Color Corrected Infinity Optical System (CCIS) |
| Observation Tube | 360° swivel range, height difference 40mm |
| Interpupillary Distance | Adjustment range: 48mm to 75mm |
| Eyepieces | UC-WF 10X/FN22 |
| Trinocular Light Path | 20：80 |
| Nosepiece | Quintuple Revolving Nosepiece |
| Objectives | Plan S-Apo BD 5X；Plan S-Apo BD 10X；Plan S-Apo BD 20X；LPlan S-Apo BD 50X |
| Stage Size (mm) | Size：320(W) X 194(L) mm，Stroke：50 X 50mm |
| Focus | Course/Fine Focus Knob
Course 42mm/ revolution，Fine 0.2mm/ revolution，0.002mm/ marks |
| Transmitted Light | Reflected Light 100W Light House RL100.00 |
| Electronics | 115 / 230V~，60 / 50Hz Halogen Light ：12V / 100W |
| DIC | Optional |
| Analyzer | Optional |
| Polarizer | Optional |
