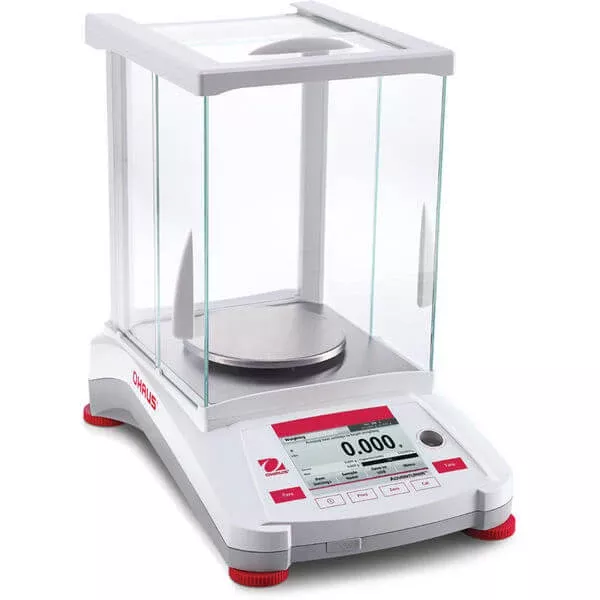

Ohaus AX623/E Adventurer Precision Balance
Maximum Capacity
620 g
Readability
0.001 g
Stabilization Time
2 Seconds
Features
- 620 g maximum capacity with 0.001 g readability
- 0.001 g repeatability for consistent precision
- Fast 2-second stabilization time
- 4.3-inch full-color VGA touchscreen
- Included glass draftshield for stable weighing conditions
- Multiple built-in weighing applications
- GLP/GMP-compliant data output with real-time clock
- USB Host, USB Device, and RS-232 connectivity
- Three-level user management for controlled access
- Stainless steel weighing pan with illuminated level indicator
The Ohaus AX623/E Adventurer Precision Balance combines high-precision weighing with intuitive operation for laboratory, industrial, and educational applications. Featuring a 620 g maximum capacity, 0.001 g readability, 0.001 g repeatability, and a fast 2-second stabilization time, the AX623/E delivers dependable performance for weighing, parts counting, formulation, density determination, check weighing, dynamic weighing, and other precision measurement tasks.
A 4.3-inch full-color VGA touchscreen provides quick access to built-in applications, while three-level user management, GLP/GMP-compliant data output, and an integrated real-time clock support traceable workflows. USB Host, USB Device, and RS-232 connectivity simplify data transfer, while the stainless steel weighing pan, included glass draftshield, illuminated level indicator, weigh-below hook, and protective in-use cover support reliable everyday operation.
INCLUDED:
The Ohaus AX623/E Adventurer Precision Balanceincludes:
- AC Adapter
- 1x In-Use Cover
- Operator’s Manual
- 1 Year Manufacturer’s Warranty
Ohaus AX623/E Adventurer Precision BalanceSpecifications
| Maximum Capacity | 620 g |
| Readability | 0.001 g |
| Repeatability | 0.001 g |
| Linearity | ±0.002 g |
| Stabilization Time | 2 Seconds |
| Minimum Weight (USP, 0.1%, Typical) | 1.6 g |
| Pan Size | 130 mm (5.1 in.) |
| Pan Material | Stainless Steel |
| Draftshield | Included |
| Display | High-Resolution Full-Color VGA Touchscreen |
| Communication | USB, RS-232, and USB Host |
| Internal Calibration | Not Included |
| Legal for Trade | No |
| Dimensions (L × W × H) | 354 × 230 × 340 mm (13.93 × 9.05 × 13.39 in.) |
| Net Weight | 5.8 kg (12.8 lb) |
| Power Supply | AC Adapter Included |
| Tare Range | Full Capacity by Subtraction |
| Units of Measurement | Gram, Milligram, Pound, Ounce, Carat, Grain, Newton, Troy Ounce, Pennyweight, and Additional Regional/Custom Units |
| Working Environment | 10°C to 30°C, 80% RH, Non-Condensing (50°F to 85°F, 80% RH, Non-Condensing) |
| Included Accessories | Draftshield and In-Use Cover |
