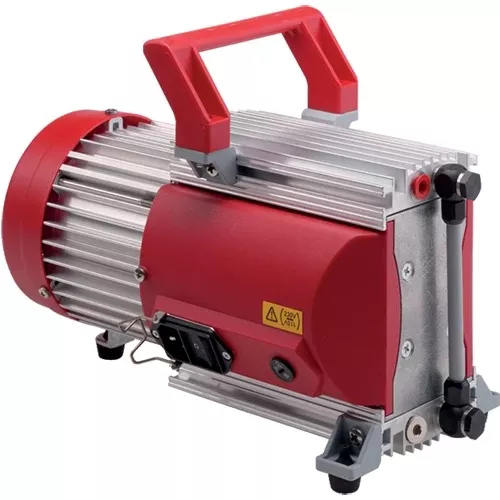

Pfeiffer MVP 020-3 Diaphragm Pump
Final Pressure
2 hPa / 1.5 Torr / 2 mbar
Maximum Pumping Speed
1.4 m 3/h / 0.82404 cfm / 23.3338 l/min
Number of Heads/Stages
2/4
Features
- Diaphragm pump with a pumping speed of up to 1.4 m3/h
- No hydrocarbons: Completely dry & oil-free diaphragm pump
- Low noise level, minimal vibrations and compact design, ideal also for use in laboratories
- Low operating costs thanks to the highest quality, short maintenance times and long maintenance intervals
- Suitable for all voltages worldwide
The Pfeiffer MVP 020-3 Diaphragm Pump represents the pinnacle of performance in vacuum technology, offering a robust solution for demanding laboratory environments. With a pumping speed that reaches up to 1.4 m³/h and compatibility with all global voltage standards, this diaphragm pump ensures a seamless and powerful operation across a variety of applications. The MVP 020-3 is completely dry and oil-free, eliminating contamination risks and reducing maintenance requirements.
This pump is designed with user convenience in mind, featuring a compact and low-vibration operation that produces only 48 dB(A) of noise, making it one of the quietest in its class. It’s engineered for reliability with short maintenance intervals and long maintenance times, significantly lowering operating costs. Additionally, the MVP 020-3 comes with an integral leak rate of 1 Pa m³/s, and it can handle intake and exhaust pressures up to 1,100 hPa. Certified according to UL/CSA 61010-1 standards and equipped with a gas ballast as an optional accessory, this pump is suited for a wide range of applications, from basic laboratory tasks to complex industrial processes.
INCLUDED:
The Pfeiffer MVP 020-3 Diaphragm Pumpincludes:
- Silencer
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 1 Year Manufacturer’s Warranty
Pfeiffer MVP 020-3 Diaphragm Pump Specifications
| Pumping speed at 50 Hz | 1.2 m 3/h / 0.70632 cfm / 20.0004 l/min |
| Pumping speed at 60 Hz | 1.4 m 3/h / 0.82404 cfm / 23.3338 l/min |
| Final pressure | 2 hPa / 1.5 Torr / 2 mbar |
| Final pressure with gas ballast | 3 hPa / 2.25 Torr / 3 mbar |
| Integral leak rate | 1Pa m3/s / 1.33 Torr l/s / 1 mbar l/s |
| Intake pressure max. | 1,100 hPa / 825 Torr / 1,100 mbar |
| Exhaust pressure, max. | 1,100 hPa / 825 Torr / 1,100 mbar |
| Connection flange (in) | G 1/8”, 1 m intake hose DN 8, lock nut, red rubber cap |
| Connection flange (out) | 1/8″ thread with silencer |
| Motor type | 1-phase motor |
| Current, max. | 1.7 A |
| Protection degree | IP40 / Type 1 |
| Certification | cTUVus certified according to UL / CSA 61010-1 |
| Switch | Yes |
| Emission sound pressure level (EN ISO 2151) | 48 dB(A) |
| Ambient temperature | 10 – 40 °C |
| Temperature: Storage | -10 – 60 °C |
| Temperature: Shipping | -10 – 60 °C |
| Cooling method | Air (Forced convection) |
| Weight | 7.3 kg / 16.09 lb |
| Gas ballast | Available as an accessory |
| Operating altitude, max. | 2,000 m |
| Input voltage(s) | 100 – 115 / 220 – 230 V AC, 50 Hz / 100 – 115 / 120 / 220 – 230 V AC (±10 %), 60 Hz |
Comparison of Models
| Spec / Product | Pfeiffer MVP 015-2 Diaphragm Pump | Pfeiffer MVP 020-3 Diaphragm Pump | Pfeiffer MVP 040-2 Diaphragm Pump | Pfeiffer MVP 070-3 Diaphragm Pump |
| FInal Pressure | 3.5 hPa / 2.625 Torr / 3.5 mbar | 2 hPa / 1.5 Torr / 2 mbar | 4 hPa / 3 Torr / 4 mbar | 1 hPa / 0.75 Torr / 1 mbar |
| Pumping speed at 60 Hz | 0.7 m3/h / 0.41202 cfm / 11.6669 l/min | 1.4 m 3/h / 0.82404 cfm / 23.3338 l/min | 2.5 m 3/h / 1.4715 cfm / 41.6675 l/min | 4.3 m 3/h / 2.53098 cfm / 71.6681 l/min |
| Intake Pressure Max. | 1,100 hPa / 825 Torr / 1,100 mbar | 1,100 hPa / 825 Torr / 1,100 mbar | 1,100 hPa / 825 Torr / 1,100 mbar | 1,100 hPa / 825 Torr / 1,100 mbar |
| Motor Type | 1-phase motor | 1-phase motor | 1-phase motor | 1-phase motor |
| Gas Ballast | Yes | Available as an accessory | Yes | No |
| Input Voltages | 100 – 115 / 208 – 236 V AC, 50 Hz / 100 – 115 / 208 – 236 V AC (±10 %), 60 Hz | 100 – 115 / 220 – 230 V AC, 50 Hz / 100 – 115 / 120 / 220 – 230 V AC (±10 %), 60 Hz | 100 – 115 / 200 – 230 V AC, 50 Hz / 100 – 115 / 120 / 200 – 230 V AC (±10 %), 60 Hz | 100 – 115 / 200 – 230 V AC, 50 Hz / 100 – 115 / 120 / 200 – 230 V AC, 60 Hz |
