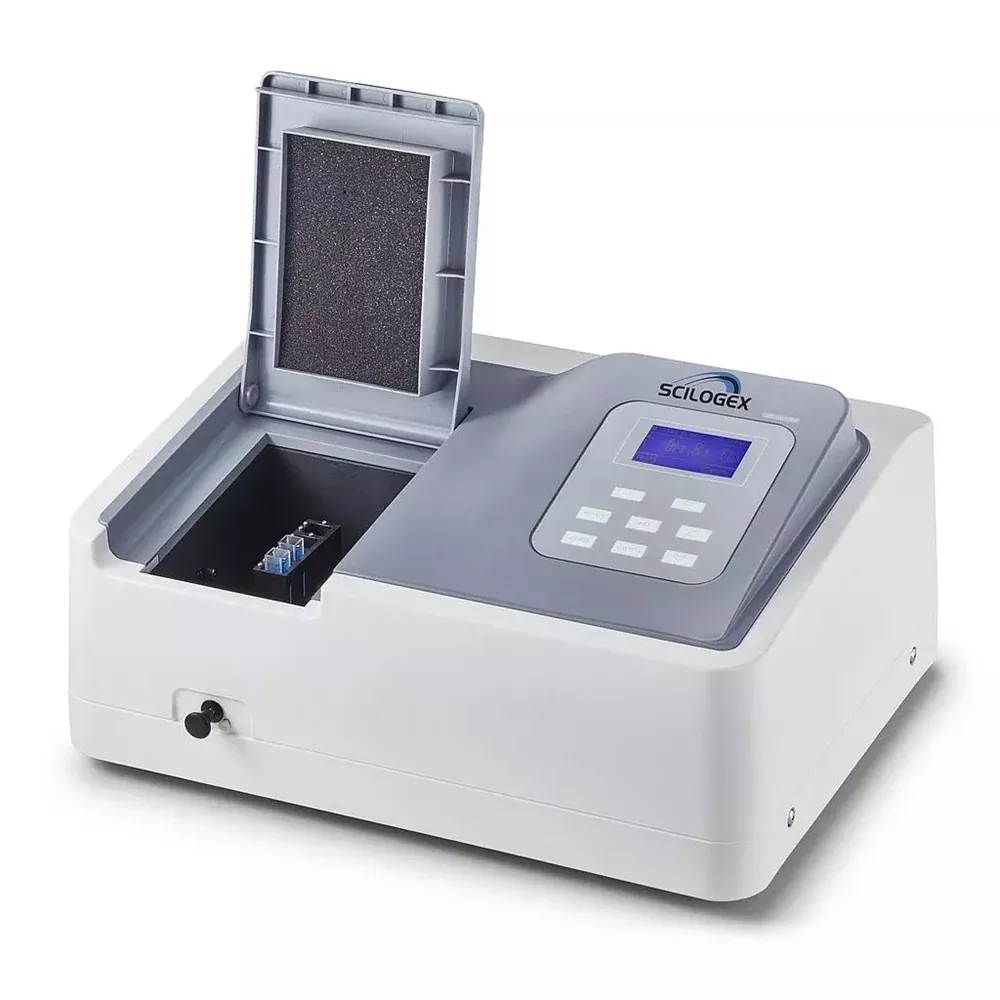

Scilogex SCI-V1000 Spectrophotometer
Wavelength Range
325-1000nm
Wavelength Accuracy
±2nm
Spectral Bandwidth
4.0nm
Features
- User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
- On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
- Data can be restored after a sudden power failure.
- Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
- PC control through application software: The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software ‘Wave Professional’ provides computer control for the spectrophotometer(through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multi-wavelength scanning & Nucleic Acid /Protein measurement.
- Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.
Scilogex is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
The Scilogex SCI-V1000 Spectrophotometer is a versatile, high-performance instrument designed for quantitative analysis across biotechnology, education, and material quality control applications. Featuring a wide wavelength range of 325–1000 nm with ±2 nm accuracy, it ensures precise measurements for a variety of tasks. The backlit LCD screen offers a clear, information-rich display, while the onboard memory stores up to 200 data sets and standard curves, even recoverable after power interruptions. Its auto wavelength setting minimizes errors, and optional PC control via ‘Wave Professional’ software expands functionality with spectrum scanning, kinetics, and nucleic acid/protein measurements. The large sample compartment supports 5–100 mm cuvettes, with accessories available for customization. Included are a tungsten lamp, cuvettes, a dust cover, and a 1-year warranty, ensuring reliable and efficient operation.
INCLUDED:
The Scilogex SCI-V1000 Spectrophotometerincludes:
- Tungsten Lamp
- 4 x 3.5ml Glass Cuvettes
- Dust Cover
- Power Cord
- Operator’s Guide
- Manufacturer’s Documentation
- 1 Year Manufacturer’s Warranty
Scilogex SCI-V1000 Spectrophotometer Specifications
|
Optical System |
Single Beam |
|
Light Source |
Tungsten lamp |
|
Spectral Bandwidth |
4.0nm |
|
Wavelength Range |
325-1000nm |
|
Wavelength Accuracy |
±2nm |
|
Wavelength Repeatability |
≤1nm |
|
Photometric Range |
-0.3-3.0 A, 0-200%T |
|
Photometric Accuracy |
±0.003A @ 0.5 A ±0.006A @ 1.0 A ±0.5%T @ 100% T |
|
Photometric Repeatability |
≤0.0015A @ 0.5 A ≤0.003A @ 1.0 A ≤0.25%T@ 100%T |
|
Stability |
≤0.002A/h @500 nm (after preheat 2 hours) |
|
Stray Light |
≤0.3%T@ 360 nm |
|
Sample Compartment |
4 position, 10mm pathlength cuvette |
|
Display |
LCD |
|
Output |
USB Port & Parallel Port (printer) |
|
Power |
110/220 VAC, 50/60Hz, 80W |
|
Dimensions (L x W x H) |
19.3 x 14.17 x 8.3 in. (49 x 36 x 21 cm) |
|
Weight |
10kg/ 22lbs |
Comparison of Models
|
Specification |
SCI-UV1000 |
SP-UV1100 |
SCI-V1000 |
SP-V1100 |
|
Light Source |
Tungsten lamp & Deuterium lamp |
Tungsten lamp & Deuterium lamp |
Tungsten lamp |
Tungsten lamp |
|
Spectral Bandwidth |
4.0nm |
2.0nm |
4.0nm |
2.0nm |
|
Wavelength Range |
200-1000nm |
190-1100nm |
325-1000nm |
320-1100nm |
|
Wavelength Accuracy |
±2nm |
±0.5nm |
±2nm |
±0.5nm |
|
Wavelength Repeatability |
≤1nm |
≤0.3nm |
≤1nm |
≤0.3nm |
|
Sample Compartment |
4 position, 10mm pathlength cuvette |
4 position, 10mm pathlength cuvette |
4 position, 10mm pathlength cuvette |
4 position, 10mm pathlength cuvette |
|
Display |
LCD |
LCD |
LCD |
LCD |
|
Output |
USB Port & Parallel Port (Printer) |
USB Port & Parallel Port (printer) |
USB Port & Parallel Port (printer) |
USB Port & Parallel Port (printer) |
|
Power |
110/220VAC, 50/60Hz, 120W |
110/220 VAC, 50/60Hz, 120W |
110/220 VAC, 50/60Hz, 80W |
110/220 VAC, 50/60Hz, 80W |
