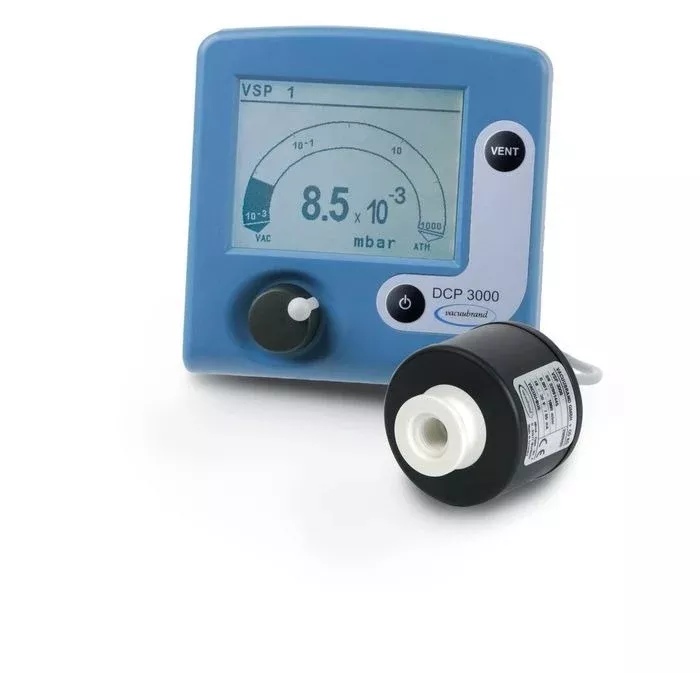

VACUUBRAND DCP 3000 Vacuum Gauge with VSP 3000 Head
Upper Measuring Limit
100 mbar/hPa (750 Torr)
Lower Measuring Limit
1 x 10-3 mbar/hPa (1 x 10-3 torr)
Interface
RS232C
Features
- Vacuum measuring device for connecting external vacuum sensors for measurements directly on the system
- Flexible and expandable with up to eight sensors, four of the types VSK 3000 / VACUU·VIEW (Atm. to 0.1 mbar) and VSP 3000 / VACUU·VIEW extended (Atm. up to 10-3 mbar)
- Relative pressure measurement with reference sensors (VSK 3000) and data logger function with up to 32000 measuring points (RS 232C)
- Robust plastic / ceramic vacuum sensor VSP 3000 with high chemical resistance
- VSP 3000 with a wide measuring range from atmospheric pressure to fine vacuum (10-3 mbar) thanks to the thermal conductivity measuring principle
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
The fully electronic vacuum measuring device DCP 3000 is both versatile and decisive with its mechanical robustness, measuring accuracy and reliability. The large, illuminated display provides the measured value display of all connected sensors via an easy-to-use rotary control. Up to eight vacuum sensors (four of each type VSK 3000 / VACUU·VIEW and VSP 3000 / VACUU·VIEW extended) can be connected to the DCP 3000. The measurement can be carried out directly on the application. The DCP 3000 enables a relative pressure measurement (reference sensor VSK 3000) as well as working with pressure-dependent switching points by specifying switch-on and switch-off points on an external valve. The vacuum measuring device can also be used as a data logger with up to 32,000 measuring points. The data is read out via the serial interface (RS 232C). The vacuum sensor VSP 3000 is based on the gas thermal conductivity (Pirani) principle for the wide measuring range from atmospheric pressure to 10-3 mbar. Thanks to its structure made of chemically resistant plastics (PBT, PUR) and ceramics, it offers significantly higher chemical resistance and robustness compared to conventional Pirani sensors with fine wire metal filaments. Please also note our alternative product VACUU·VIEW extended.
INCLUDED:
The VACUUBRAND DCP 3000 Vacuum Gauge with VSP 3000 Headincludes:
- Power Supply
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND DCP 3000 Vacuum Gauge with VSP 3000 Head Specifications
| Upper measuring limit in mbar/hPa | 1000 mbar |
| Upper measuring limit in torr | 750 torr |
| Lower measuring limit in mbar/hPa | 1 x 10-3 |
| Lower measuring limit in torr | 1 x 10-3 torr |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar/hPa/torr mbar/hPa/torr |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class IEC 60529 | IP 20 |
| Protection class UL50E | Type 1 |
| Protection class front side IEC 60529 | IP 42 |
| Weight | 0.44 kg |
| Dimension L in mm | 144 mm |
| Dimension B in mm | 124 mm |
| Dimension H in mm | 114 mm |
| Vacuum sensor | VSP 3000 |
| Cable length of vacuum sensor | 2 m |
| Cable length connection in m | 2 m |
| NRTL certification | Yes |
| Items supplied | Vacuum gauge with external vacuum sensor VSP 3000, ready for operation, with wall-plug power supply and manual. |
| Interface | RS 232C |
Comparison of Models
|
Specification |
DCP 3000 + VSK 3000 |
DCP 3000 + VSP 3000 |
VACUU-VIEW Extended |
VACUU-VIEW |
DVR 2pro |
|
Upper Measuring Limit (mbar/hPa) |
1080 |
1000 |
1100 |
1100 |
1060 |
|
Lower Measuring Limit (mbar/hPa) |
0.1 |
1 x 10-3 |
1 x 10-3 |
0.1 |
1 |
|
Accuracy of Measurement |
<± 1 mbar/hPa/torr |
± 15% of indicated value |
± 15% of indicated value (0.01-5 mbar) / ±3 mbar (> 5 mbar) |
<± 1 mbar/hPa/torr |
<± 1 mbar/hPa/torr |
|
Ambient Temperature (Operation) |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
|
Weight |
0.44 kg |
0.44 kg |
0.19 kg |
0.19 kg |
0.4 kg |
|
Dimensions LxBxH (mm) |
144 x 124 x 114 |
144 x 124 x 114 |
50 x 62 x 103 |
50 x 62 x 103 |
115 x 115 x 90 |
|
Vacuum Sensor |
VSK 3000 |
VSP 3000 |
Integrated |
Integrated |
Integrated |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
No |
