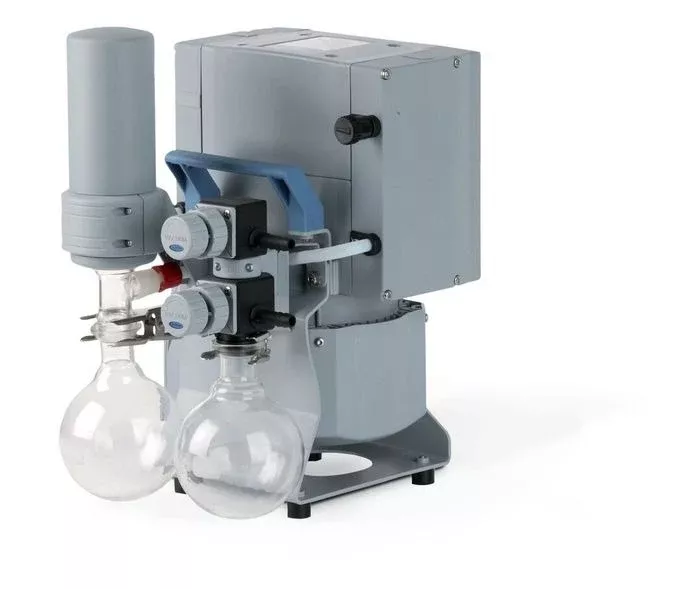

VACUUBRAND MD 4C NT +AK SYNCHRO+EK Chemistry Vacuum System
Ultimate Vacuum
1.5 mbar
Max. pumping speed at 60 Hz
2.2 cfm
Number of Heads/Stages
4/3
Features
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Simultaneous operation of two independent vacuum applications, with reliable check valves to prevent interference between systems
- Excellent environmental friendliness due to efficient solvent recovery
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
This chemistry vacuum system provides the simultaneous operation of two processes with only one pump. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens. Each vacuum connection is provided with a manual valve to regulate the effective flow at each port. The MD 4C NT pump offers more than sufficient pumping speed also for the parallel operation of two challenging applications. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.
INCLUDED:
The VACUUBRAND MD 4C NT +AK SYNCHRO+EK Chemistry Vacuum Systemincludes:
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND MD 4C NT +AK SYNCHRO+EK Chemistry Vacuum System Specifications
| Max. pumping speed 50 Hz | 3.4 m3/h |
| Max. pumping speed 60 Hz | 2.2 cfm |
| Ultimate vacuum | 1.5 mbar / 1.1 torr |
| Ultimate vacuum with gas ballast | 3 mbar / 2.2 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | 2 x hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Coolant connection | 2 x hose nozzle DN 6-8 mm |
| Rated motor power | 0.25 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 326 mm |
| Dimension B in mm | 248 mm |
| Dimension H in mm | 402 mm |
| Weight | 17.6 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
Comparison of Models
|
Specification |
MD 1C +AK+EK |
MD 4C NT +2AK |
MD 4C NT +AK SYNCHRO+EK |
MD 4C NT +AK+EK |
|
Max. Pumping Speed 50 Hz |
1.3 m³/h |
3.4 m³/h |
3.4 m³/h |
3.4 m³/h |
|
Ultimate Vacuum |
2 mbar / 1.5 torr |
1.5 mbar / 1.1 torr |
1.5 mbar / 1.1 torr |
1.5 mbar / 1.1 torr |
|
Number of Heads |
4 |
4 |
4 |
4 |
|
Number of Stages |
3 |
3 |
3 |
3 |
|
Ambient Temperature Range(Operation) |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
|
Rated Motor Power |
0.08 kW |
0.25 kW |
0.25 kW |
0.25 kW |
|
Dimensions (L x B x H in mm) |
316 x 239 x 405 |
319 x 243 x 374 |
326 x 248 x 402 |
326 x 243 x 402 |
|
Weight |
11 kg |
16.7 kg |
17.6 kg |
17.3 kg |
|
Noise Level |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
|
Rated Mains Voltage Range |
220-230 V / 100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
|
Specialty Components |
separator for condensates, catchpot at inlet (AK), exhaust vapor condenser at the outlet (EK) |
separator for condensates, catchpot at inlet(AK) |
separator for condensates, catchpot at inlet (AK), exhaust vapor condenser at the outlet (EK), SYNCHRO for a second vacuum connection |
separator for condensates, catchpot at inlet (AK), exhaust vapor condenser at the outlet (EK) |
