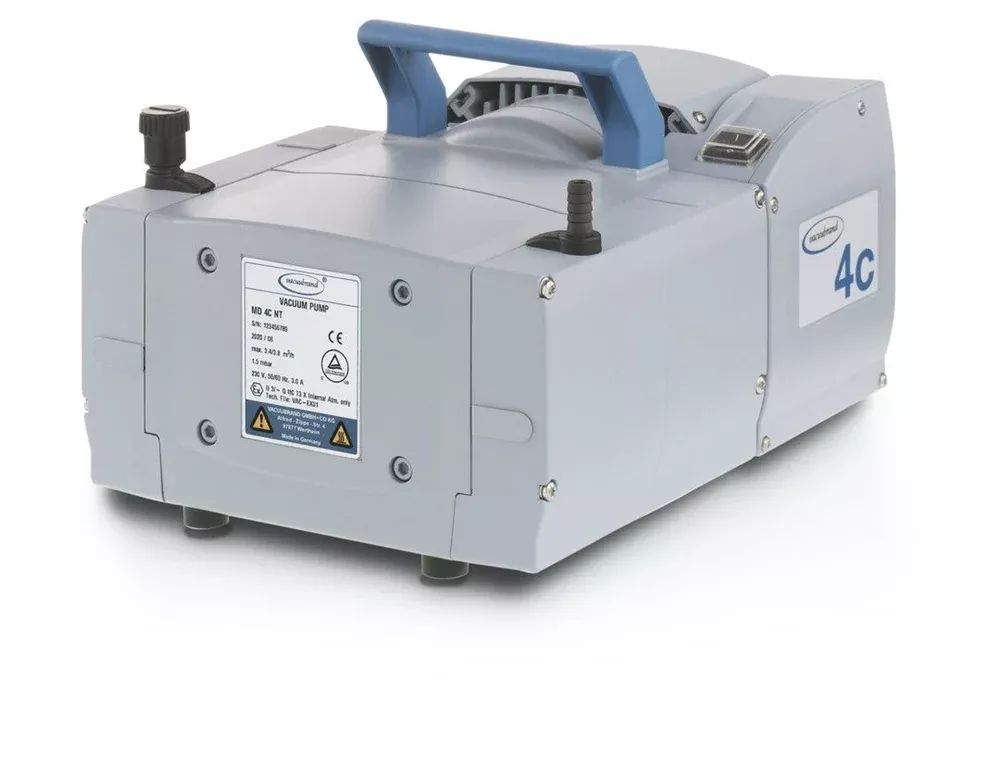

VACUUBRAND MD 4C NT Chemistry Diaphragm Pump
Ultimate Vacuum
1.5 mbar
Max. pumping speed at 60 Hz
2.2 cfm
Number of Heads/Stages
4/3
Features
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Whisper quiet and very low vibration
- Long diaphragm life, maintenance-free drive system
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance. Three-stage chemistry-design diaphragm pumps are an excellent choice for applications with corrosive gases and vapors with high vacuum requirements. Typical applications are parallel and rotary evaporators, concentrators, drying ovens and many other laboratory applications. The MD 4C NT has an outstanding performance for pumping large amounts of vapor, e.g., out of drying ovens and gel dryers. This powerful pump is at the heart of a complete family of well-proven and reliable vacuum systems and pumping units for larger lab applications.
INCLUDED:
The VACUUBRAND MD 4C NT Chemistry Diaphragm Pumpincludes:
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND MD 4C NT Chemistry Diaphragm Pump Specifications
| Max. pumping speed 50 Hz | 3.4 m3/h |
| Max. pumping speed 60 Hz | 2.2 cfm |
| Ultimate vacuum | 1.5 mbar / 1.1 torr |
| Ultimate vacuum with gas ballast | 3 mbar / 2.2 torr |
| Number of heads | 4 |
| Number of stages | 3 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.25 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 328 mm |
| Dimension B in mm | 243 mm |
| Dimension H in mm | 198 mm |
| Weight | 14.3 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pump completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
Comparison of Models
|
Specs |
MD 1 Diaphragm Pump |
MD 1C Chemistry Diaphragm Pump |
MD 4 NT Diaphragm Pump |
MD 4 VARIO Select Diaphragm Pump |
MD 4C NT Chemistry Diaphragm Pump |
MD 4C VARIO Select Chemistry Diaphragm Pump |
MD 12 NT Diaphragm Pump |
|
Max. Pumping Speed 50 Hz |
1.2 m³/h |
1.3 m³/h |
3.8 m³/h |
5.7 m³/h |
3.4 m³/h |
4.6 m³/h |
12.1 m³/h |
|
Ultimate Vacuum |
1.5 mbar / 1.1 torr |
2 mbar / 1.5 torr |
1 mbar / 0.75 torr |
1 mbar / 0.75 torr |
1.5 mbar / 1.1 torr |
1.5 mbar / 1.1 torr |
2 mbar / 1.5 torr |
|
Number of Heads |
4 |
4 |
4 |
4 |
4 |
4 |
8 |
|
Vacuum Controller |
N/A |
N/A |
N/A |
VACUU·SELECT |
N/A |
VACUU·SELECT |
N/A |
|
Rated Motor Power |
0.08 kW |
0.08 kW |
0.25 kW |
0.53 kW |
0.25 kW |
0.53 kW |
0.53 kW |
|
Weight |
7.3 kg |
7.9 kg |
16.4 kg |
19.1 kg |
14.3 kg |
16.8 kg |
30.3 kg |
|
Noise Level |
40 dBA |
41 dBA |
45 dBA |
45 dBA |
45 dBA |
43 dBA |
50 dBA |
|
NRTL Certification |
Yes |
Yes |
Yes |
No |
Yes |
No |
No |
|
Mains Voltage Range |
220-230 V / 100-115 V / 120 V |
220-230 V / 100-115 V / 120 V |
100-115 V / 120 V |
100-120 V |
100-115 V / 120 V |
100-120 V |
100-120 V |
