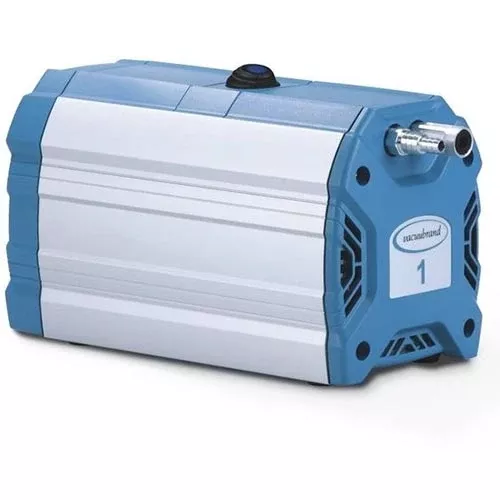

VACUUBRAND ME 1 Diaphragm Pump

VACUUBRAND ME 1 Diaphragm Pump

Ultimate Vacuum
100 mbar / 75 torr torr

Maximum Pumping Speed
0.5 cfm at 60Hz

Number of Heads/Stages
1/1

Features

• Convenient, quick and simple to use due to the new top mounted power switch
• Whisper quiet and very low vibration
• Requires minimal benchtop space
• Maintenance-free drive system and proven long diaphragm life
• Wetted materials: PTFE, aluminum

VACUUBRAND is a Platinum Service Member

Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.

A partner you can count on. Backed by dependable support.

Outstanding
Warranty Support

Coverage that provides real peace of mind.

Quick
Turnaround

Fast answers and efficient resolutions.

Dependable
Service

Consistent support from start to finish.

Backed for the
Long Run

Continued support throughout ownership.

Vacuum filtration is one of the most common applications used for sample preparation in chemistry, microbiology, waste water control and other analytical processes. The ME 1 diaphragm pump offers a compact, high performance and easy-to-use solution which is perfect for single port filtrations. These oil-free diaphragm pumps provide a well-proven and extraordinarily long diaphragm life time with typically 15,000 operating hours. The functional, space saving and innovative design with visible top mounted power switch ensures convenient and quick operation for day to day lab work. The PTFE diaphragm and valves are rugged and provide high chemical resistance. An optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and ultimate vacuum. One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use. Typical applications for the ME 1 are aqueous filtrations. With filtration at 100 mbar, 90% of atmospheric pressure is available as a driving force. If a certain pressure difference must not be exceeded, an optional manual regulator valve with dial gauge enables variable fine adjustment of the pumping speed and ultimate vacuum. For working with aggressive solvents a chemistry version (ME 1C) is available.

INCLUDED:
The VACUUBRAND ME 1 Diaphragm Pumpincludes:

• Power Cord
• Operator’s Manual
• Manufacturer’s Documentation
• 2 Year Manufacturer’s Warranty

VACUUBRAND ME 1 Diaphragm Pump Specifications
