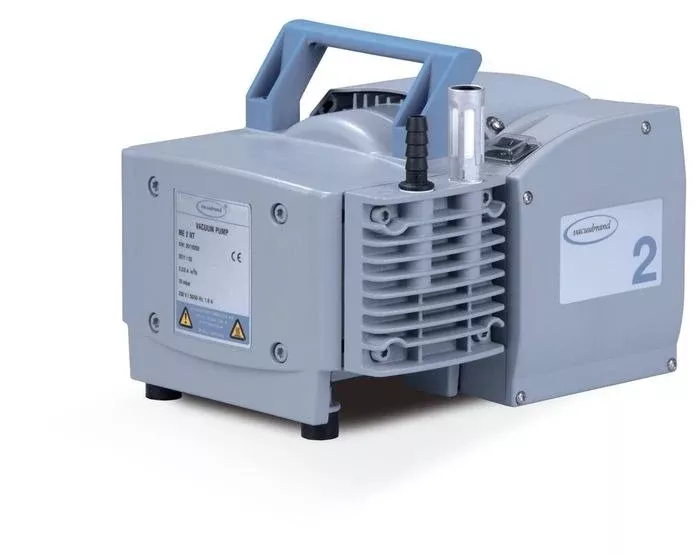

VACUUBRAND ME 2 NT Diaphragm Pump
Ultimate Vacuum
70 mbar / 52 torr
Maximum Pumping Speed
1.4 CFM at 60Hz
Number of Heads/Stages
1/1
Features
- Whisper quiet and very low vibration.
- Powerful, even for parallel operation of several applications.
- High performance even at low vacuum levels.
- Very low vibration.
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs.
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors at low vacuum requirement. In contrast to waterjet pumps they do not consume water and therefore do not produce any contaminated waste water in daily use. Typical applications are vacuum ovens, filtrations and multi-port manifolds for medium throughput, as well as pumping of gases and oil-free evacuation in general. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. Diaphragm vacuum pumps are an excellent choice for applications with non-corrosive gases and vapors. The materials used in these pumps like aluminum and special plastics are opening a wide range of applications. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life.
INCLUDED:
The VACUUBRAND ME 2 NT Diaphragm Pumpincludes:
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND ME 2 NT Diaphragm Pump Specifications
| Max. pumping speed 50 Hz | 2 m3/h |
| Max. pumping speed 60 Hz | 1.4 cfm |
| Ultimate vacuum | 70 mbar / 52 torr |
| Number of heads | 1 |
| Number of stages | 1 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 2 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | G1/4″ |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 245 mm |
| Dimension B in mm | 211 mm |
| Dimension H in mm | 198 mm |
| Weight | 10.2 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pump completely mounted, ready for use, silencer, hose nozzle, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
Comparison of Models
|
Specs |
ME 1C Chemistry |
ME 2 NT |
ME 2C NT Chemistry |
ME 4 NT |
ME 4C NT Chemistry |
ME 4R NT |
ME 8 NT |
ME 8C NT Chemistry |
ME 16 NT |
|
Max. Pumping Speed 50 Hz |
0.7 m³/h |
2 m³/h |
2.1 m³/h |
4 m³/h |
3.9 m³/h |
3.8 m³/h |
7.3 m³/h |
7.1 m³/h |
16.4 m³/h |
|
Ultimate Vacuum |
100 mbar / 75 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
100 mbar / 75 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
70 mbar / 53 torr |
|
Number of Heads |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
4 |
8 |
|
Number of Stages |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Rated Motor Power |
0.04 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.25 kW |
0.25 kW |
0.53 kW |
|
Weight |
5.4 kg |
10.2 kg |
10.2 kg |
11.0 kg |
11.1 kg |
11.5 kg |
16.4 kg |
14.3 kg |
30.3 kg |
|
Noise Level |
49 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
54 dBA |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
|
Mains Voltage Range |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
120 V |
120 V |
120 V |
