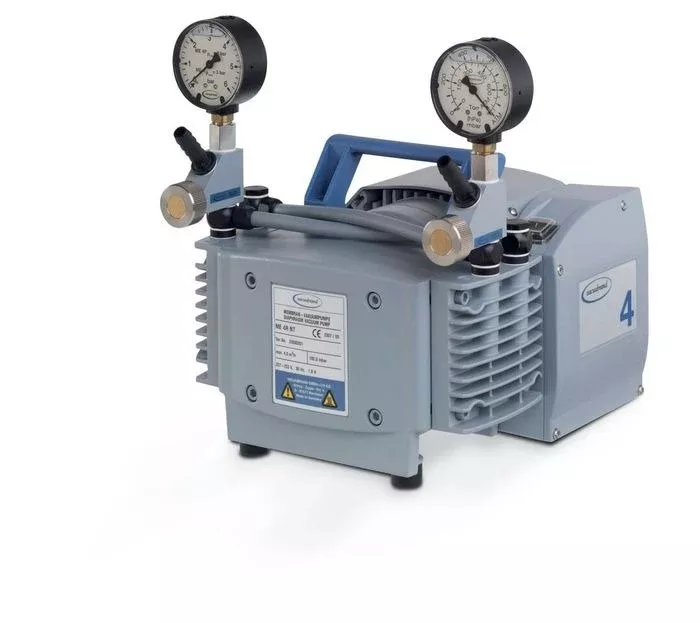

VACUUBRAND ME 4R NT Diaphragm Pump
Ultimate Vacuum
100 mbar (75 torr)
Maximum Pumping Speed
2.5 cfm at 60Hz
Number of Heads/Stages
2/1
Features
- Contamination-free pumping, evacuation and compression
- High flow rate even near ultimate vacuum
- Adjustment of outlet pressure and vacuum level with regulator valves
- Very low vibration
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
This one-stage diaphragm pump works as a vacuum generator and as well as a compressor. All parts in contact with pumped media are made of aluminum and selected plastics (PTFE diaphragms and valves). They enable a wide range of applications for non-corrosive gases. The inlet and outlet connections of the ME 4R NT are equipped with regulator valves for vacuum and overpressure, respectively. Both the compression pressure and vacuum level can be adjusted. Inlet vacuum level and outlet pressure are indicated by manometers. This one-stage diaphragm pump is an excellent choice for continuous, oil-free pumping and evacuation of non-corrosive gases and also for compression. Typical applications are vacuum ovens, pressure and vacuum filtrations and generation of compressed, absolutely oil-free air. Inlet- and outlet pressure can be adjusted continuously using the regulator valves. The manometers on inlet- and outlet side enable easy setting of the desired vacuum and pressure levels.
INCLUDED:
The VACUUBRAND ME 4R NT Diaphragm Pumpincludes:
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND ME 4R NT Diaphragm Pump Specifications
| Max. pumping speed 50 Hz | 3.8 m3/h |
| Max. pumping speed 60 Hz | 2.5 cfm |
| Ultimate vacuum | 100 mbar / 75 torr |
| Number of heads | 2 |
| Number of stages | 1 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 4 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 254 mm |
| Dimension B in mm | 268 mm |
| Dimension H in mm | 290 mm |
| Weight | 11.5 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pump completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
Comparison of Models
|
Specs |
ME 1C Chemistry |
ME 2 NT |
ME 2C NT Chemistry |
ME 4 NT |
ME 4C NT Chemistry |
ME 4R NT |
ME 8 NT |
ME 8C NT Chemistry |
ME 16 NT |
|
Max. Pumping Speed 50 Hz |
0.7 m³/h |
2 m³/h |
2.1 m³/h |
4 m³/h |
3.9 m³/h |
3.8 m³/h |
7.3 m³/h |
7.1 m³/h |
16.4 m³/h |
|
Ultimate Vacuum |
100 mbar / 75 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
100 mbar / 75 torr |
70 mbar / 52 torr |
70 mbar / 52 torr |
70 mbar / 53 torr |
|
Number of Heads |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
4 |
8 |
|
Number of Stages |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Rated Motor Power |
0.04 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.25 kW |
0.25 kW |
0.53 kW |
|
Weight |
5.4 kg |
10.2 kg |
10.2 kg |
11.0 kg |
11.1 kg |
11.5 kg |
16.4 kg |
14.3 kg |
30.3 kg |
|
Noise Level |
49 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
54 dBA |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
|
Mains Voltage Range |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
120 V |
120 V |
120 V |
