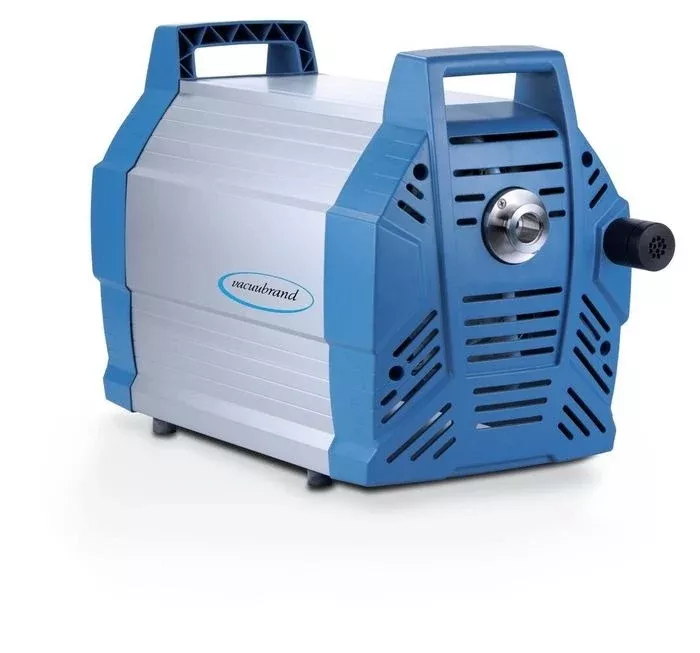

VACUUBRAND MV 10 NT Diaphragm Pump
Ultimate Vacuum
0.5 mbar
Max. pumping speed at 60 Hz
6.1 cfm
Number of Heads/Stages
8/4
Features
- Contamination-free pumping and evacuation
- High flow rate even near ultimate vacuum
- Whisper quiet
- Very low vibration
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
Four-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases when the need is to reach fractional millibar ultimate vacuums. All parts in contact with pumped vapors or gases are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. These pumps provide the advantageous combination of high pumping speed with an extraordinary good ultimate vacuum down to 0.5 mbar. The highly flexible, fabric-reinforced double diaphragms made of FKM offer extended operating life. Eight-cylinder NT pumps features quiet operation, smooth and easy to clean surfaces. Four-stage diaphragm pumps are an excellent choice for continuous, contamination-free evacuation and pumping of non-aggressive gases under the very high vacuum demands of applications in physics and analytics. They generate a clean vacuum, as they are designed without any contact seals, hence no abrasion or dust is produced that might creep back into the application. Due to the outstanding ultimate vacuum, these pumps are often used as alternative to rotary vane pumps. A typical application is the use as backing pump for turbomolecular drag pumps. Additionally, the VARIO® design provides vacuum control by precise adjustment of the diaphragm pump´s motor speed. Depending on the application, the demand-responsive motor speed control results in unsurpassed lifetimes of service parts such as diaphragms, as well as optimal performance for backing of turbo pumps.
INCLUDED:
The VACUUBRAND MV 10 NT Diaphragm Pumpincludes:
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND MV 10 NT Diaphragm Pump Specifications
| Max. pumping speed 50 Hz | 10.4 m3/h |
| Max. pumping speed 60 Hz | 6.1 cfm |
| Ultimate vacuum | 0.5 mbar / 0.38 torr |
| Number of heads | 8 |
| Number of stages | 4 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 25 |
| Outlet connection | G1/2″ |
| Rated motor power | 0.53 kW |
| Rated motor speed at 50/60 Hz | 1650 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 554 mm |
| Dimension B in mm | 260 mm |
| Dimension H in mm | 359 mm |
| Weight | 30.3 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA |
| NRTL certification | No |
| Items supplied | Pump completely mounted, ready for use, silencer, with manual. |
| Rated mains voltage range 1 | 100-120 V |
| Mains frequency 1 | 50-60 Hz |
Comparison of Models
|
Specification |
MV 2 NT |
MV 2 VARIO Select |
MV 10 NT |
MV 10C NT Chemistry |
|
Max. Pumping Speed 50 Hz |
2.2 m³/h |
3.3 m³/h |
10.4 m³/h |
9.5 m³/h |
|
Ultimate Vacuum |
0.5 mbar / 0.4 torr |
0.3 mbar / 0.2 torr |
0.5 mbar / 0.38 torr |
0.9 mbar / 0.68 torr |
|
Number of Heads |
4 |
4 |
8 |
8 |
|
Number of Stages |
4 |
4 |
4 |
4 |
|
Rated Motor Power |
0.25 kW |
0.53 kW |
0.53 kW |
0.53 kW |
|
Weight |
16.4 kg |
19.1 kg |
30.3 kg |
27.4 kg |
|
Noise Level |
50 dBA |
45 dBA |
50 dBA |
50 dBA |
|
NRTL Certification |
Yes |
No |
No |
No |
|
Mains Voltage Range |
100-115 V / 120 V |
100-120 V |
100-120 V |
100-120 V |
