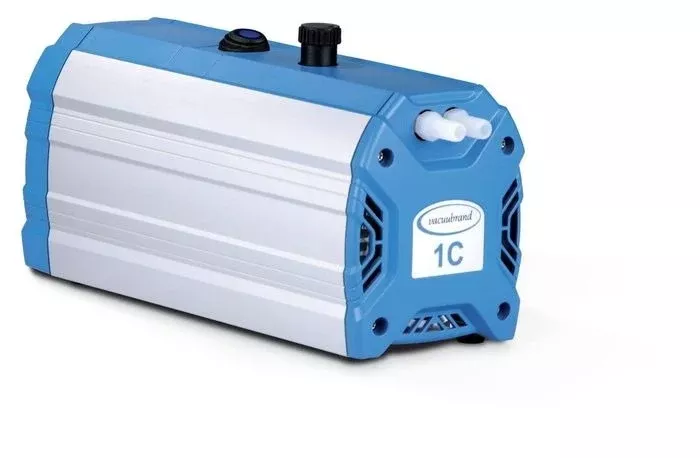

VACUUBRAND MZ 1C Chemistry Diaphragm Pump

VACUUBRAND MZ 1C Chemistry Diaphragm Pump

Ultimate Vacuum
12 mbar / 9 torr

Maximum Pumping Speed
0.5 cfm at 60Hz

Number of Heads/Stages
2/2

Features

• Outstanding chemical resistance and superior vapor tolerance.
• Convenient, quick and simple to use due to the top mounted power switch.
• Optimized vacuum even with gas ballast for continuous purge.
• Whisper quiet and very low vibration.
• Maintenance-free drive system and proven long diaphragm life.

VACUUBRAND is a Platinum Service Member

Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.

A partner you can count on. Backed by dependable support.

Outstanding
Warranty Support

Coverage that provides real peace of mind.

Quick
Turnaround

Fast answers and efficient resolutions.

Dependable
Service

Consistent support from start to finish.

Backed for the
Long Run

Continued support throughout ownership.

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE-sandwich diaphragms increase reliability and extend operating life. The MZ 1C pump is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensable vapors. It features slim design for space-saving installation and good vacuum performance. A manual vacuum regulator valve with dial gauge for adjustment of pumping speed and ultimate vacuum is available as accessory. Two-stage chemistry-design diaphragm pumps are an excellent choice for continuous, oil-free pumping of gases at medium vacuum requirements. In contrast to water jet pumps, they do not consume water and therefore do not produce any contaminated waste water. Typical applications are rotary evaporators, gel dryers, filtrations and many other lab applications. The MZ 1C is a powerful pump for smaller vacuum apparatus enabling continuous pumping of solvent vapors. It´s a compact, stand alone pump with low ultimate vacuum. If the process requires atmospheric condensation of pumped vapors or electronic vacuum control, we recommend the pump families based on the MZ 2C NT or MD 1C.

INCLUDED:
The VACUUBRAND MZ 1C Chemistry Diaphragm Pumpincludes:

• Power Cord
• Operator’s Manual
• Manufacturer’s Documentation
• 2 Year Manufacturer’s Warranty

VACUUBRAND MZ 1C Chemistry Diaphragm Pump Specifications

Comparison of Models
