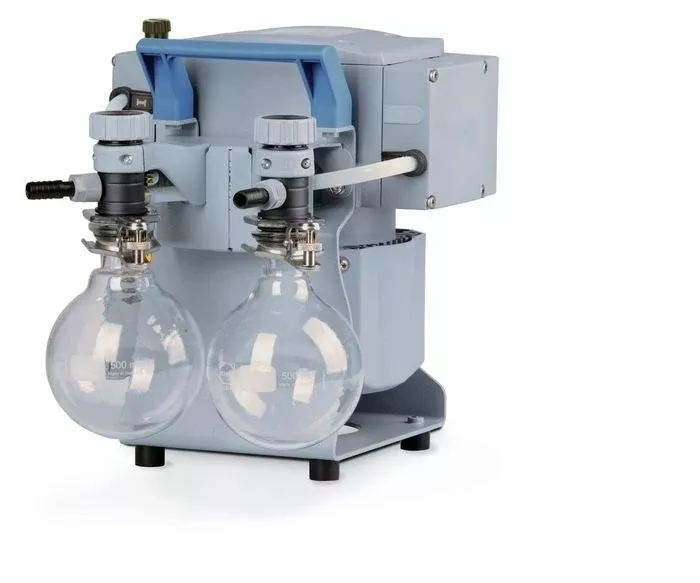

VACUUBRAND MZ 2C NT +2AK Chemistry Vacuum System
Ultimate Vacuum
7 mbar / 5 torr
Maximum Pumping Speed
1.4 CFM at 60Hz
Number of Heads/Stages
2/2
Features
- Outstanding chemical resistance and superior vapor tolerance.
- High performance even at low vacuum levels.
- Optimized vacuum even with gas ballast for condensate purge.
- Whisper quiet and very low vibration.
- Separators at inlet and outlet to collect condensates.
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where there are no requirements for condensation of solvent vapors at the outlet. Typical applications are vacuum concentrators, gel dryers and filtration. The separator at the inlet (AK), made of glass with protective coating, retains particles and liquid droplets. The separator at the outlet collects condensate, avoids condensate backflow towards the pump, and reinforces the whisper-quiet operation of the pump.
INCLUDED:
The VACUUBRAND MZ 2C NT +2AK Chemistry Vacuum Systemincludes:
- Inlet Separator
- Outlet Separator
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND MZ 2C NT +2AK Chemistry Vacuum System Specifications
| Max. pumping speed 50 Hz | 2 m3/h |
| Max. pumping speed 60 Hz | 1.4 cfm |
| Ultimate vacuum | 7 mbar / 5 torr |
| Ultimate vacuum with gas ballast | 12 mbar / 9 torr |
| Number of heads | 2 |
| Number of stages | 2 |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 319 mm |
| Dimension B in mm | 243 mm |
| Dimension H in mm | 309 mm |
| Weight | 13.6 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
Comparison of Models
|
Specification |
MZ 2C NT + AK SYNCHRO + EK |
MZ 2C NT +2AK |
MZ 2C NT +AK+EK |
MZ 2C NT +AK+M+D |
|
Max. Pumping Speed 50 Hz |
2 m³/h |
2 m³/h |
2 m³/h |
2 m³/h |
|
Ultimate Vacuum |
7 mbar / 5 torr |
7 mbar / 5 torr |
7 mbar / 5 torr |
7 mbar / 5 torr |
|
Number of Heads |
2 |
2 |
2 |
2 |
|
Number of Stages |
2 |
2 |
2 |
2 |
|
Ambient Temperature Range(Operation) |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
|
Rated Motor Power |
0.18 kW |
0.18 kW |
0.18 kW |
0.18 kW |
|
Dimensions (L x B x H in mm) |
326 x 248 x 402 |
319 x 243 x 309 |
326 x 243 x 402 |
310 x 243 x 313 |
|
Weight |
14.5 kg |
13.6 kg |
14.2 kg |
13.4 kg |
|
Noise Level |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
|
Rated Mains Voltage Range |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
100-115 V / 120 V |
|
Specialty Components |
separator for condensates, catchpot at inlet (AK), exhaust vapor condenser at the outlet (EK), SYNCHRO for a second vacuum connection |
2 separators at the inlet (AK) |
separator for condensates, catchpot at inlet (AK), exhaust vapor condenser at the outlet (EK) |
separator for condensates, catchpot at inlet (AK), manometer pressure gauge (M), pump has manual flow control (D) |
