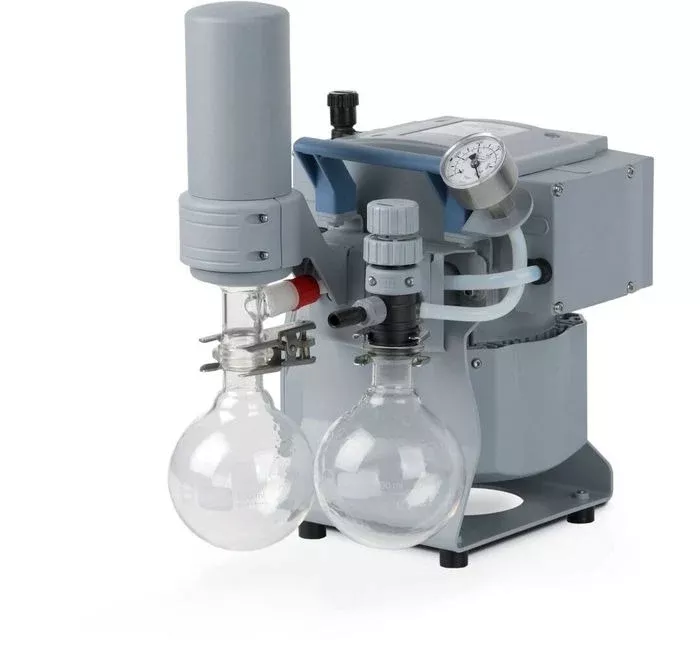

VACUUBRAND PC 101 NT Chemistry Pumping Unit
Ultimate Vacuum
7 mbar / 5 torr
Maximum Pumping Speed
1.4 CFM at 60Hz
Number of Heads/Stages
2/2
Features
- Outstanding chemical resistance and superior vapor tolerance.
- High performance even at low vacuum levels.
- Optimized vacuum even with gas ballast for condensate purge.
- Whisper quiet and very low vibration.
- Manual vacuum control, analog vacuum display.
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators and vacuum drying ovens. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.
INCLUDED:
The VACUUBRAND PC 101 NT Chemistry Pumping Unitincludes:
- Power Cord
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND PC 101 NT Chemistry Pumping Unit Specifications
| Max. pumping speed 50 Hz | 2 m3/h |
| Max. pumping speed 60 Hz | 1.4 cfm |
| Ultimate vacuum | 7 mbar / 5 torr |
| Ultimate vacuum with gas ballast | 12 mbar / 9 torr |
| Number of heads | 2 |
| Number of stages | 2 |
| Vacuum controller | Manometer |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Hose nozzle DN 8-10 mm |
| Outlet connection | Hose nozzle DN 8-10 mm |
| Coolant connection | 2 x hose nozzle DN 6-8 mm |
| Rated motor power | 0.18 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Dimension L in mm | 326 mm |
| Dimension B in mm | 243 mm |
| Dimension H in mm | 402 mm |
| Weight | 14.5 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
| NRTL certification | Yes |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
Comparison of Models
|
Specification |
PC 101 NT |
PC 201 NT |
PC 510 Select |
PC 511 Select |
PC 520 Select |
PC 610 Select |
PC 611 Select |
PC 620 Select |
|
Max. pumping speed 50 Hz |
2 m³/h |
3.4 m³/h |
2 m³/h |
2 m³/h |
2 m³/h |
3.4 m³/h |
3.4 m³/h |
3.4 m³/h |
|
Ultimate vacuum |
7 mbar / 5 torr |
1.5 mbar / 1.1 torr |
7 mbar / 5 torr |
7 mbar / 5 torr |
7 mbar / 5 torr |
1.5 mbar / 1.1 torr |
1.5 mbar / 1.1 torr |
1.5 mbar / 1.1 torr |
|
Number of heads |
2 |
4 |
2 |
2 |
2 |
4 |
4 |
4 |
|
Number of stages |
2 |
3 |
2 |
2 |
2 |
3 |
3 |
3 |
|
Vacuum controller |
Manometer |
Manometer |
VACUU·SELECT |
VACUU·SELECT |
VACUU·SELECT |
VACUU·SELECT |
VACUU·SELECT |
VACUU·SELECT |
|
Ambient Temperature Range(Operation) |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
|
Rated motor power |
0.18 kW |
0.25 kW |
0.18 kW |
0.18 kW |
0.18 kW |
0.25 kW |
0.25 kW |
0.25 kW |
|
Weight |
14.5 kg |
17.5 kg |
17.9 kg |
18.4 kg |
18.4 kg |
20.4 kg |
20.6 kg |
20.6 kg |
|
Noise (sound pressure level) |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
45 dBA |
|
NRTL certification |
Yes |
Yes |
No |
No |
No |
No |
No |
No |
|
Rated mains voltage range |
100-115 V |
100-115 V |
100-115 V |
100-115 V |
100-115 V |
100-115 V |
100-115 V |
100-115 V |
