Name: VACUUBRAND VACUU-Select, VACUU-VIEW, VSP 3000, and KF DN 16 Package for Fine Vacuum Control
Brand: hotmedicalcenter.com
SKU: 20700100
Price: 2997.96 USD
Availability: InStock

VACUUBRAND VACUU-Select, VACUU-VIEW, VSP 3000, and KF DN 16 Package for Fine Vacuum Control

Upper Measuring Limit
825torr

Lower Measuring Limit
1 x 10-3 torr

Accuracy
+/- 15% of indicated value in the range 0.01-5 mbar/hPa/torr

Features

Complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from atmosphere to fine vacuum (10-3 mbar)
Application editor allows easy customization
Graphic user interface for simple operation
Predefined applications for quick, reproducible results and application editor for easy customization
Rugged VACUU·VIEW extended gauge with wide measuring range offers superior chemical resistance and mechanical robustness

VACUUBRAND is a Platinum Service Member

Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.

A partner you can count on. Backed by dependable support.

Outstanding
Warranty Support

Coverage that provides real peace of mind.

Quick
Turnaround

Fast answers and efficient resolutions.

Dependable
Service

Consistent support from start to finish.

Backed for the
Long Run

Continued support throughout ownership.

The VACUU·SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU·SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps and VACUU·PURE screw pumps. With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU·BUS system.

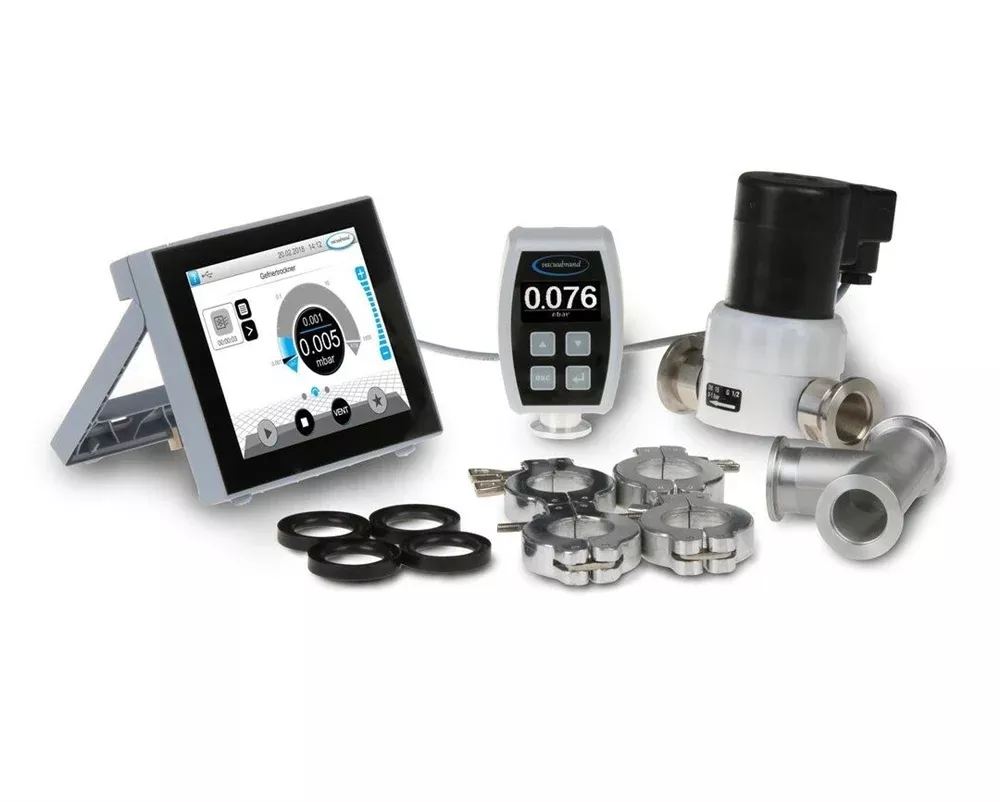

INCLUDED:
The VACUUBRAND VACUU-Select, VACUU-VIEW, VSP 3000, and KF DN 16 Package for Fine Vacuum Controlincludes:

Vacuum controller VACUU·SELECT (without internal vacuum sensor and venting valve) with with VACUU·VIEW extended and power supply
Solenoid valve VV-B 15C KF DN 16
T-piece KF DN 16
Hose nozzle DN 10 mm (PP)
Clamping and sealing rings
Operator’s Manual
Manufacturer’s Documentation
2 Year Manufacturer’s Warranty

VACUUBRAND VACUU-Select, VACUU-VIEW, VSP 3000, and KF DN 16 Package for Fine Vacuum Control Specifications

Upper measuring limit in mbar/hPa	1100 mbar
Upper measuring limit in torr	825 torr
Lower measuring limit in mbar/hPa	1 x 10^-3
Lower measuring limit in torr	1 x 10^-3 torr
Measurement principle	Ceramic diaphragm sensor + ceramic jacketed Pirani sensor
Accuracy of measurement	+- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for> 5 mbar mbar/hPa/torr
Vacuum sensor	VACUU·VIEW extended
Temperature coefficient	+- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K
Vacum connection	Small flange KF DN 16 / hose nozzle DN 10 mm
Venting valve	No
Lower ambient temperature (storage)	-10 °C
Upper ambient temperature (storage)	60 °C
Lower ambient temperature (operation)	10 °C
Upper ambient temperature (operation)	40 °C
Max. media temperature for continuous operation	40 °C
Max. media temperature short term	80 °C
Material of outer housing	Robust plastic housing with good chemical resistance
Protection class IEC 60529	IP 40
Protection class UL50E	Type 1
Protection class front side IEC 60529	IP 41
Protection class UL50E front side	Type 2
Dimension L in mm	152 mm
Dimension B in mm	127 mm
Dimension H in mm	41 mm
Weight	0.6 kg
Max. current for VACUU BUS (24V DC)	4 A
Cable length connection in m	2 m
Interface	Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
NRTL certification	Yes
Items supplied	Package for fine vacuum control, consisting of: Vacuum controller VACUU-SELECT (without internal vacuum sensor and venting valve) with VACUU·VIEW extended and power supply, solenoid valve VV-B 15C KF DN 16, T-piece KF DN 16, hose nozzle DN 10 mm (PP), clamping and sealing rings, ready for use, with manual.

Comparison of Models

Specification	VACUU-Select Benchtop	VACUU-Select Scaffold	VACUU-Select + VACUU-VIEW + VSP 3000 (KF DN 16)	VACUU-Select + VACUU-VIEW + VSP 3000 (KF DN 25)	VACUU-Select + VSP 3000 (KF DN 16)	VACUU-Select + VSP 3000 (KF DN 25)
Upper Measuring Limit (mbar/hPa)	1080	1080	1100	1100	1000	1000
Lower Measuring Limit (mbar/hPa)	0.1	0.1	1 x 10^-3	1 x 10^-3	1 x 10^-3	1 x 10^-3
Accuracy of Measurement	<± 1 mbar/hPa/torr	<± 1 mbar/hPa/torr	± 15% of indicated value (0.01-5 mbar) / ±3 mbar (> 5 mbar)	± 15% of indicated value (0.01-5 mbar) / ±3 mbar (> 5 mbar)	± 15% of indicated value (0.01-5 mbar/hPa/torr)	± 15% of indicated value (0.01-5 mbar/hPa/torr)
Vacuum Sensor	VACUU·SELECT	VACUU·SELECT	VACUU·VIEW extended	VACUU·VIEW extended	VSP 3000	VSP 3000
Vacuum Connection	Hose nozzle DN 6/10 mm	Hose nozzle DN 6/10 mm	Small flange KF DN 16 / hose nozzle DN 10 mm	Small flange KF DN 25 / hose nozzle DN 15 mm	Small flange KF DN 16 / hose nozzle DN 10 mm	Small flange KF DN 25 / hose nozzle DN 15 mm
Dimensions LxBxH (mm)	191 x 127 x 187	152 x 127 x 188	152 x 127 x 41	152 x 127 x 41	152 x 127 x 41	152 x 127 x 41
Weight (kg)	2	2	0.6	0.6	0.6	0.6
