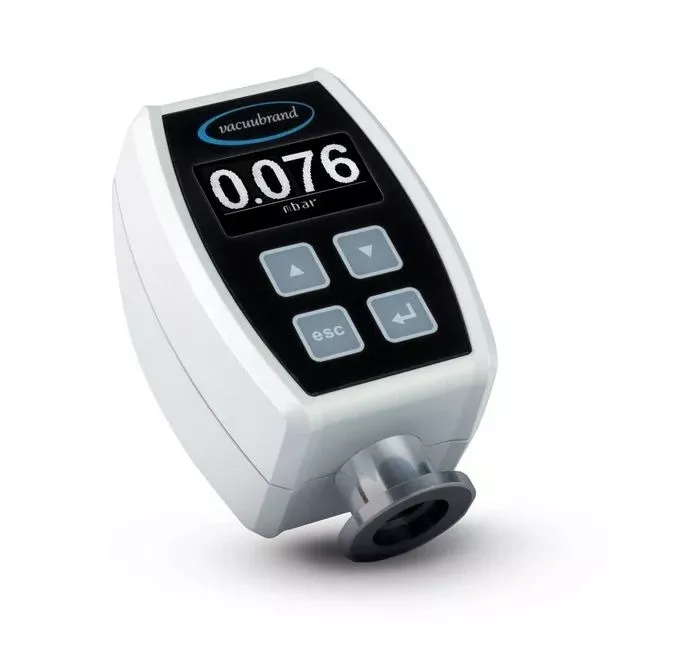

VACUUBRAND VACUU-VIEW Extended Vacuum Gauge
Upper Measuring Limit
1100 mbar/hPa (825 torr)
Lower Measuring Limit
1 x 10-3 mbar/hPa (1 x 10-3 torr)
Vacuum Sensors
Integrated
Features
- Precision and chemical resistance in an exceptionally wide range from atmosphere down to 10-3 mbar, one gauge only for both rough and fine vacuum
- Compact design with integrated sensors for useful setup in laboratory and process
- The chemical resistant combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures a long product life even with aggressive chemicals
- Illuminated display, easy to read
- Display with menu driven handling, easy to use e.g. for unit settings
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10-3 mbar.
INCLUDED:
The VACUUBRAND VACUU-VIEW Extended Vacuum Gaugeincludes:
- Kit Hose Nozzle DN 6/10 mm
- Power Supply
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND VACUU-VIEW Extended Vacuum Gauge Specifications
| Upper measuring limit in mbar/hPa | 1100 mbar |
| Upper measuring limit in torr | 825 torr |
| Lower measuring limit in mbar/hPa | 1 x 10-3 |
| Lower measuring limit in torr | 1 x 10-3 torr |
| Measurement principle | Ceramic diaphragm sensor + ceramic jacketed Pirani sensor |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for> 5 mbar mbar/hPa/torr |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Venting valve | No |
| Protection class IEC 60529 | IP 54 |
| Protection class UL50E | Type 5 |
| Protection class front side IEC 60529 | IP 54 |
| Weight | 0.19 kg |
| Dimension L in mm | 50 mm |
| Dimension B in mm | 62 mm |
| Dimension H in mm | 103 mm |
| Vacuum sensor | Integr. |
| Cable length connection in m | 2 m |
| NRTL certification | Yes |
| Items supplied | Vacuum gauge with integrated vacuum sensors, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
Comparison of Models
|
Specification |
DCP 3000 + VSK 3000 |
DCP 3000 + VSP 3000 |
VACUU-VIEW Extended |
VACUU-VIEW |
DVR 2pro |
|
Upper Measuring Limit (mbar/hPa) |
1080 |
1000 |
1100 |
1100 |
1060 |
|
Lower Measuring Limit (mbar/hPa) |
0.1 |
1 x 10-3 |
1 x 10-3 |
0.1 |
1 |
|
Accuracy of Measurement |
<± 1 mbar/hPa/torr |
± 15% of indicated value |
± 15% of indicated value (0.01-5 mbar) / ±3 mbar (> 5 mbar) |
<± 1 mbar/hPa/torr |
<± 1 mbar/hPa/torr |
|
Ambient Temperature (Operation) |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
|
Weight |
0.44 kg |
0.44 kg |
0.19 kg |
0.19 kg |
0.4 kg |
|
Dimensions LxBxH (mm) |
144 x 124 x 114 |
144 x 124 x 114 |
50 x 62 x 103 |
50 x 62 x 103 |
115 x 115 x 90 |
|
Vacuum Sensor |
VSK 3000 |
VSP 3000 |
Integrated |
Integrated |
Integrated |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
No |
