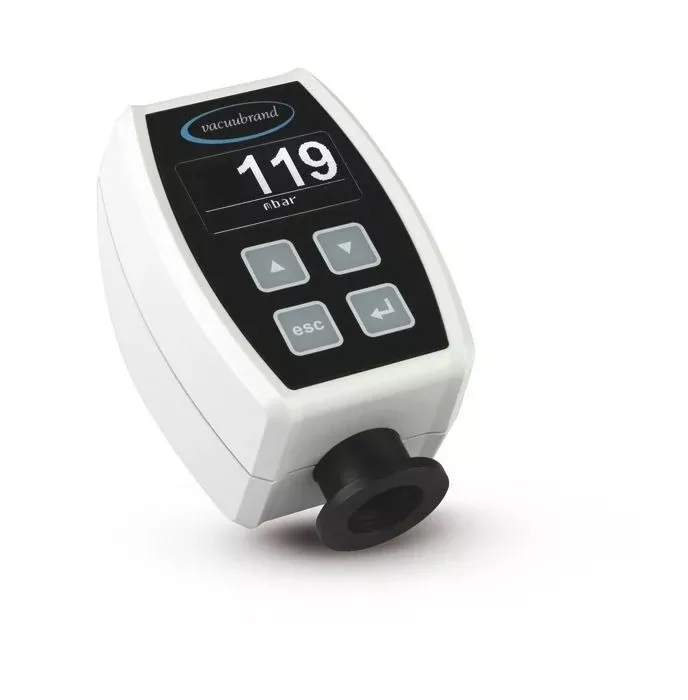

VACUUBRAND VACUU-VIEW Vacuum Gauge
Upper Measuring Limit
1100 mbar/hPa (825 torr)
Lower Measuring Limit
0.1 mbar/hPa (0.075 torr)
Vacuum Sensors
Integrated
Features
- Highest precision in the range from atmosphere down to 0.1 mbar, perfect gauge for all rough vacuum applications
- Compact design with integrated sensor for useful setup in laboratory and process
- Chemically resistant ceramic diaphragm sensor, highly reliable at harsh laboratory conditions even in case of aggressive chemicals
- Illuminated display, easy to read
- Display with menu driven handling easy to use e.g. for unit setting
VACUUBRAND is a Platinum Service Member
Platinum recognition is reserved for approximately 10% of our manufacturer partners and is earned through above-and-beyond performance, service, and customer care—not through purchase or sponsorship.
A partner you can count on. Backed by dependable support.
Outstanding
Warranty Support
Coverage that provides real peace of mind.
Quick
Turnaround
Fast answers and efficient resolutions.
Dependable
Service
Consistent support from start to finish.
Backed for the
Long Run
Continued support throughout ownership.
For the monitoring of your vacuum processes in the rough vacuum range, the new vacuum gauges VACUU·VIEW are perfect! Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW provides gas-independent pressure indication with precise capacitive readout.
INCLUDED:
The VACUUBRAND VACUU-VIEW Vacuum Gaugeincludes:
- Kit Hose Nozzle DN 6/10 mm
- Power Supply
- Operator’s Manual
- Manufacturer’s Documentation
- 2 Year Manufacturer’s Warranty
VACUUBRAND VACUU-VIEW Vacuum Gauge Specifications
| Upper measuring limit in mbar/hPa | 1100 mbar |
| Upper measuring limit in torr | 825 torr |
| Lower measuring limit in mbar/hPa | 0.1 |
| Lower measuring limit in torr | 0.075 torr |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure |
| Accuracy of measurement | <+- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr |
| ATEX conformity | II 3/- G Ex h IIC T4 Gc X Internal Atm. only |
| Temperature coefficient | <0.07 mbar/hPa/0.05 torr /K mbar/hPa/torr /K |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Venting valve | No |
| Protection class IEC 60529 | IP 54 |
| Protection class UL50E | Type 5 |
| Protection class front side IEC 60529 | IP 54 |
| Weight | 0.19 kg |
| Dimension L in mm | 50 mm |
| Dimension B in mm | 62 mm |
| Dimension H in mm | 103 mm |
| Vacuum sensor | Integr. |
| Cable length connection in m | 2 m |
| NRTL certification | Yes |
| Items supplied | Vacuum gauge with integrated vacuum sensor, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual. |
Comparison of Models
|
Specification |
DCP 3000 + VSK 3000 |
DCP 3000 + VSP 3000 |
VACUU-VIEW Extended |
VACUU-VIEW |
DVR 2pro |
|
Upper Measuring Limit (mbar/hPa) |
1080 |
1000 |
1100 |
1100 |
1060 |
|
Lower Measuring Limit (mbar/hPa) |
0.1 |
1 x 10-3 |
1 x 10-3 |
0.1 |
1 |
|
Accuracy of Measurement |
<± 1 mbar/hPa/torr |
± 15% of indicated value |
± 15% of indicated value (0.01-5 mbar) / ±3 mbar (> 5 mbar) |
<± 1 mbar/hPa/torr |
<± 1 mbar/hPa/torr |
|
Ambient Temperature (Operation) |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
10 – 40 °C |
|
Weight |
0.44 kg |
0.44 kg |
0.19 kg |
0.19 kg |
0.4 kg |
|
Dimensions LxBxH (mm) |
144 x 124 x 114 |
144 x 124 x 114 |
50 x 62 x 103 |
50 x 62 x 103 |
115 x 115 x 90 |
|
Vacuum Sensor |
VSK 3000 |
VSP 3000 |
Integrated |
Integrated |
Integrated |
|
NRTL Certification |
Yes |
Yes |
Yes |
Yes |
No |
